Concrete Mixers

Click on a product picture below for more information

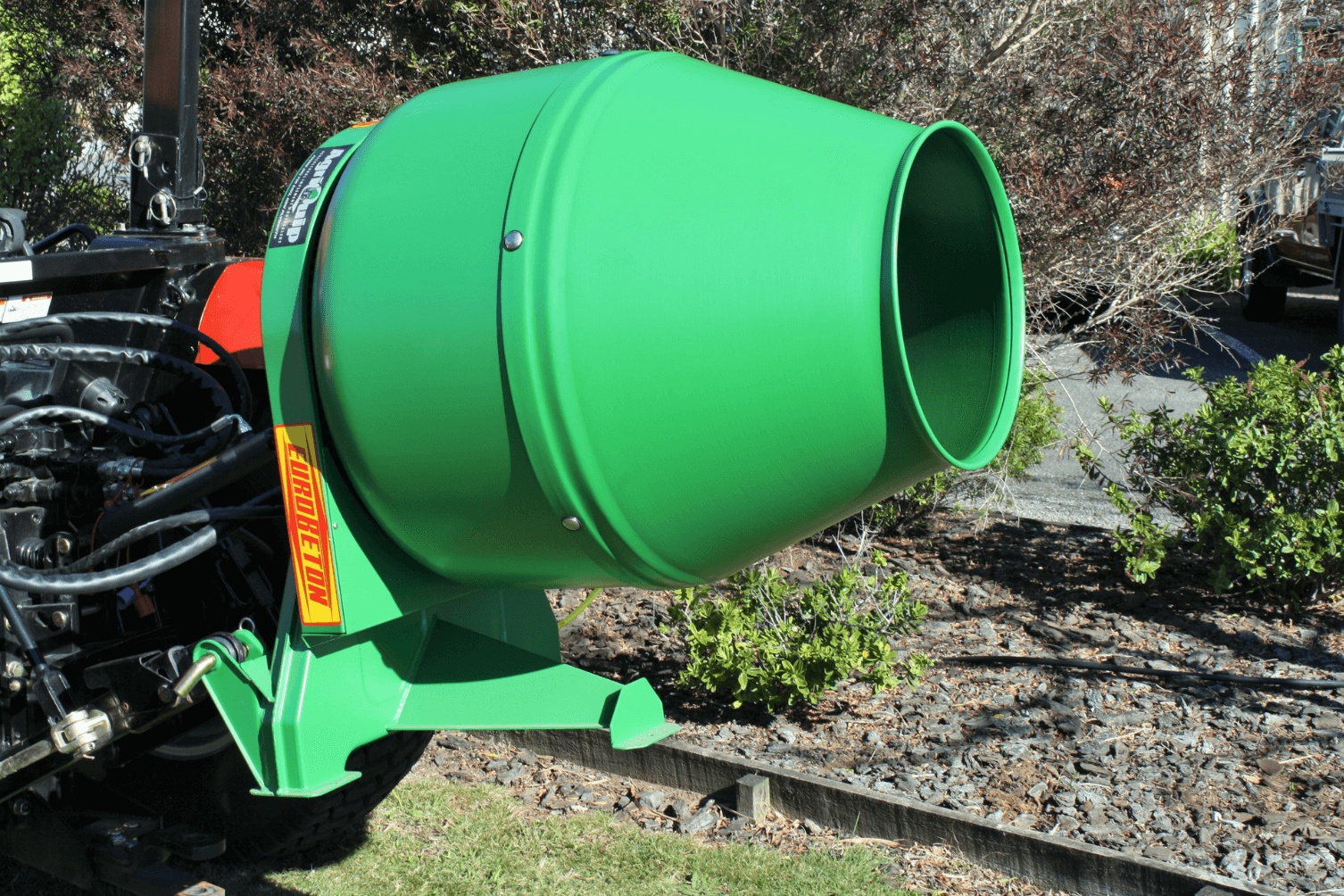

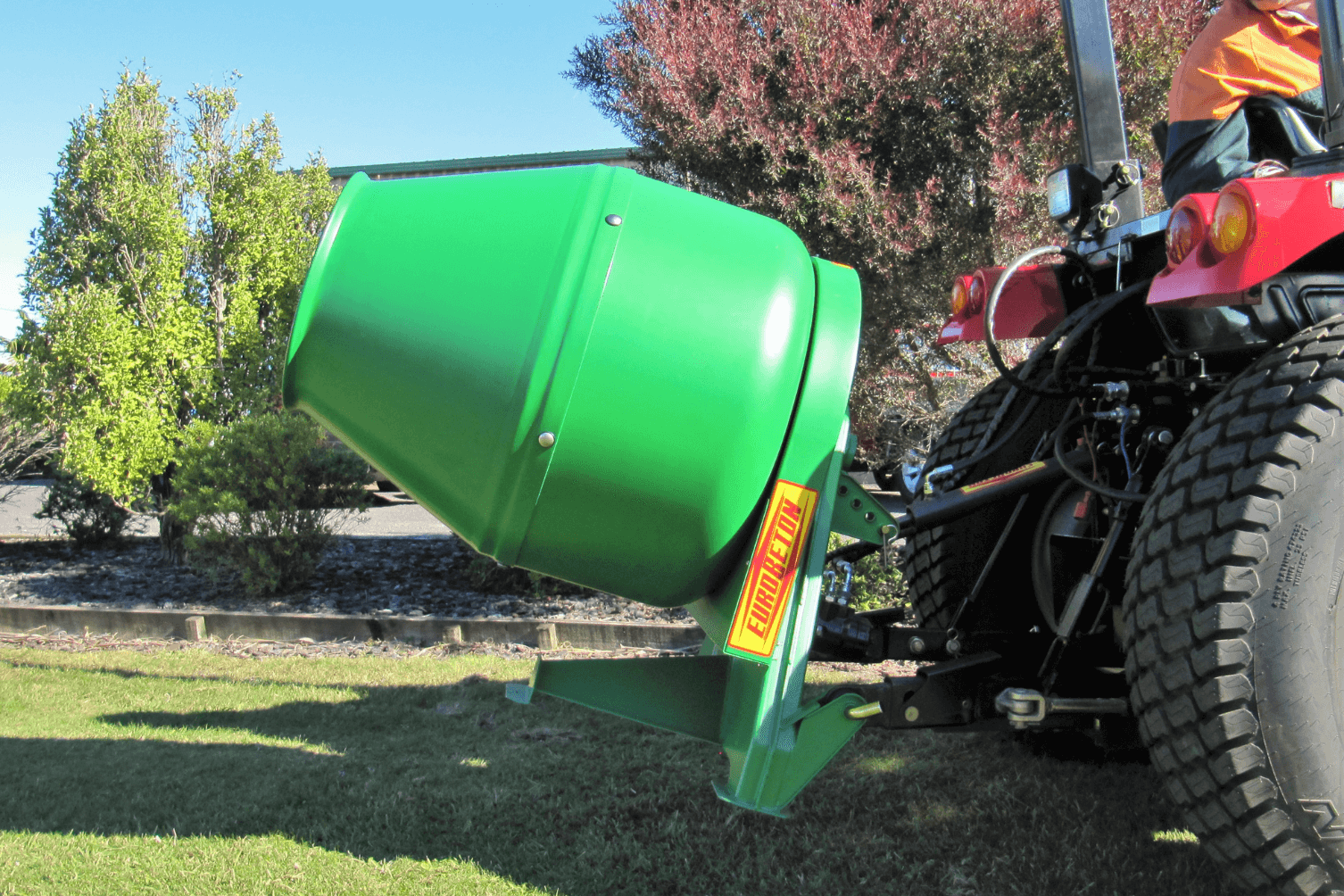

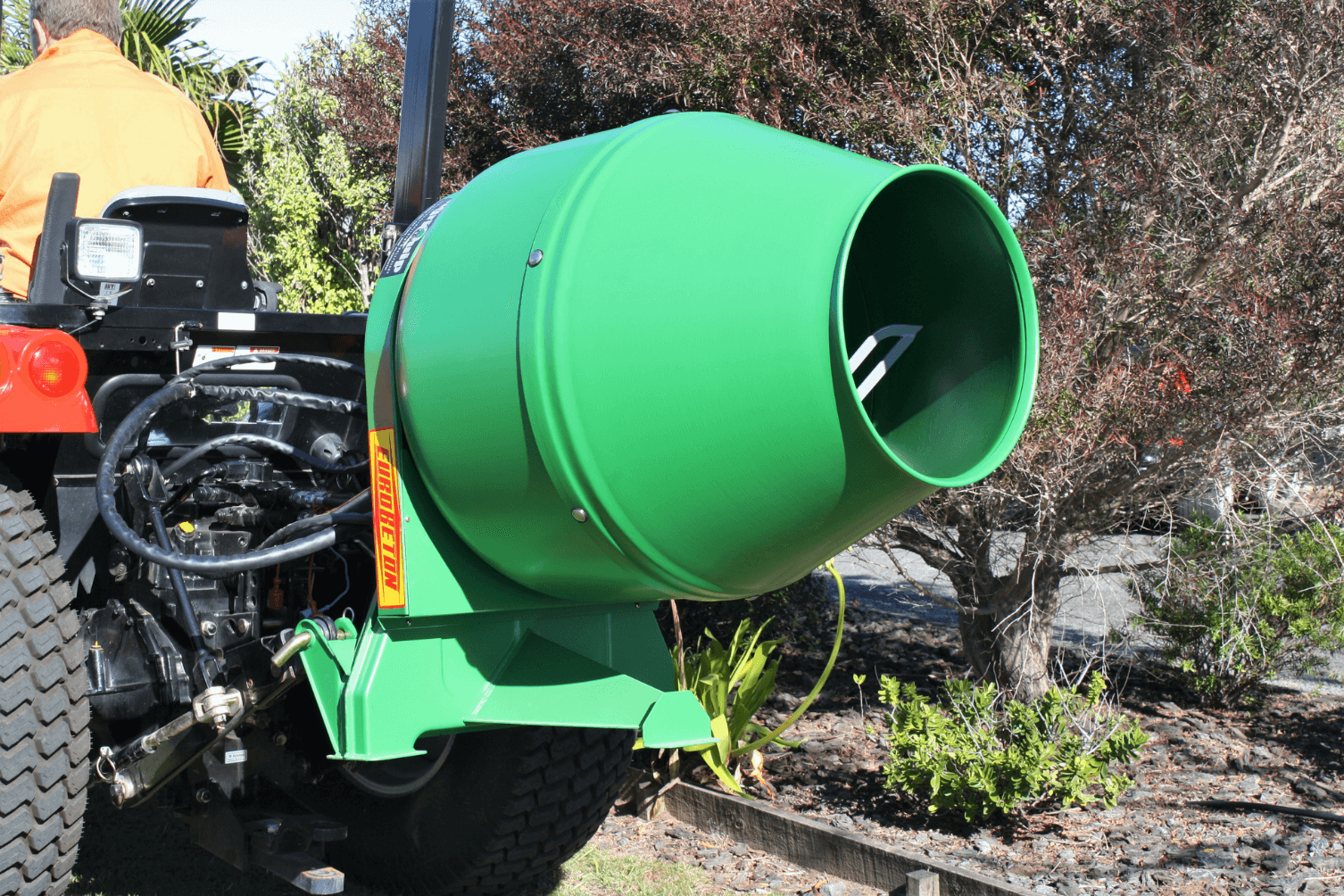

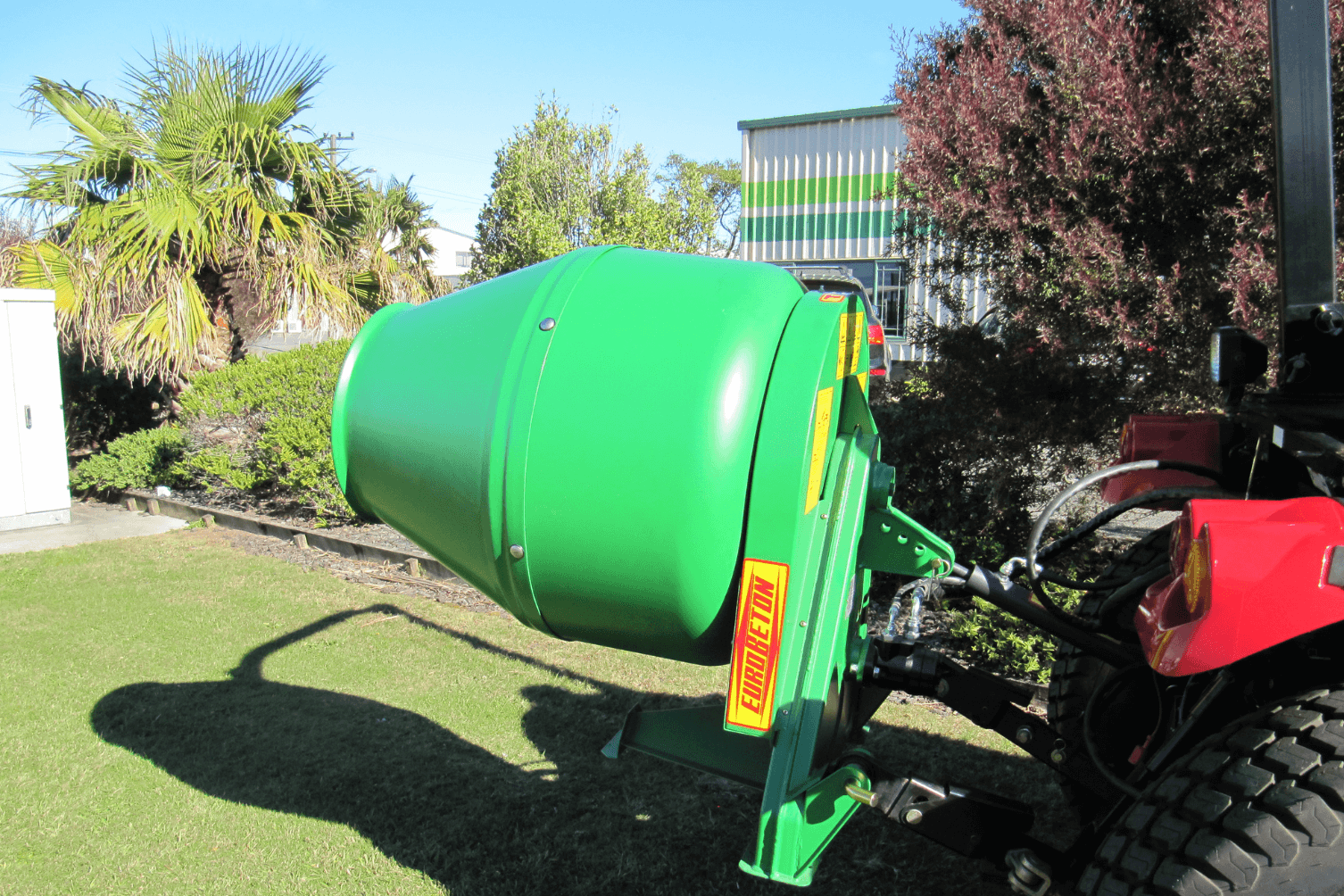

T400 Mixer

Mixing concrete seems to be an ongoing task for many jobs around farms and these portable mixers mean you can mix your specific loads when and where you want to. The T400, a mixer of the Agriquip range built to mix concrete, can also be used to blend seeds, fertilizers and even wash vegetables.

FEATURES

  • • 320 litre capacity (250 litre mix capacity)

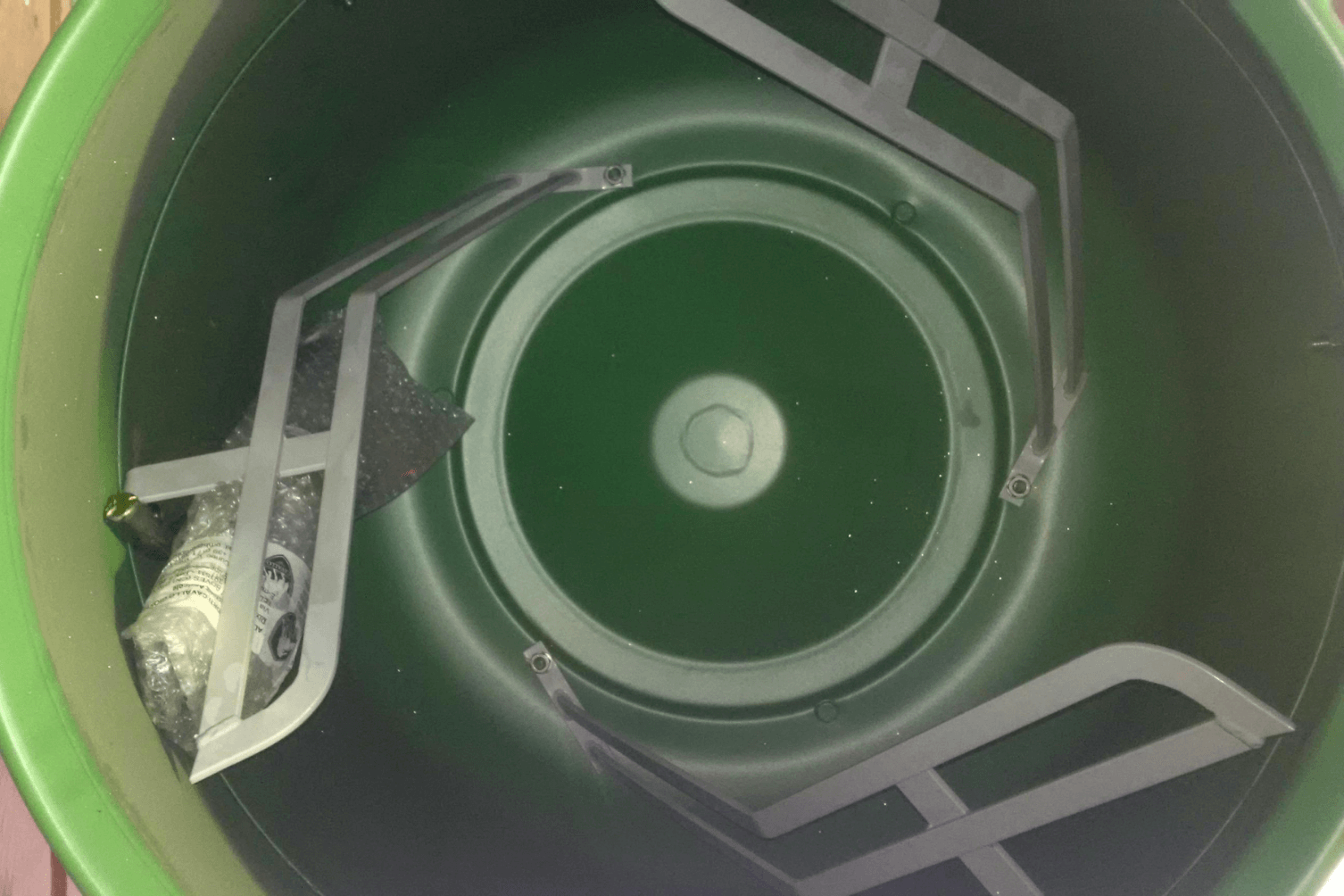

  • • 3 x paddles

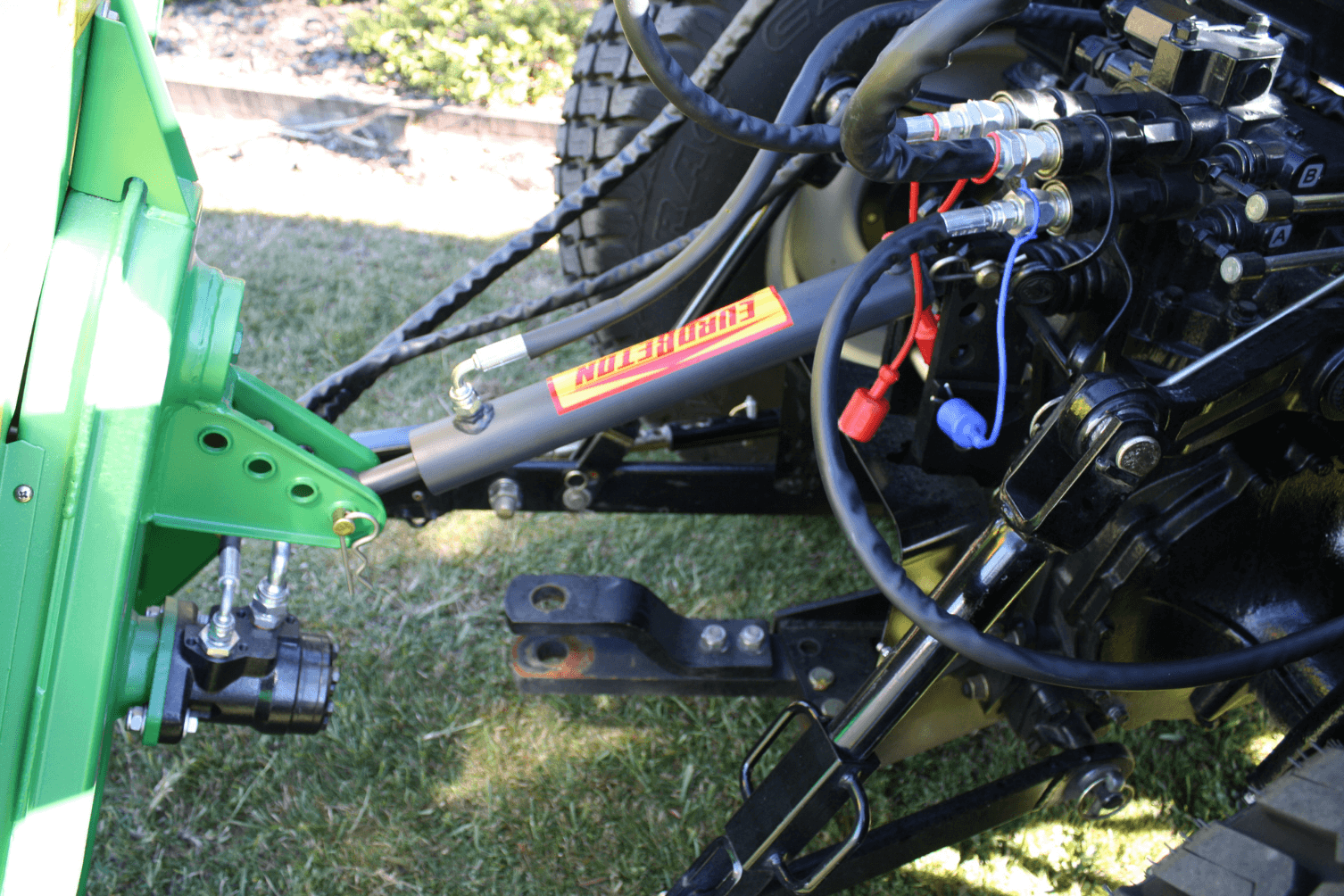

  • • Comes standard with hydraulic top link

SPECIFICATIONS

T400
Weight 103 kg
Overall Dimensions (HxWxD)                  950 mm x 700 mm x 1200 mm

OPTIONS

  • • Hydraulic or PTO Drive

PHOTO GALLERY

(click photo to enlarge)





DOWNLOADS

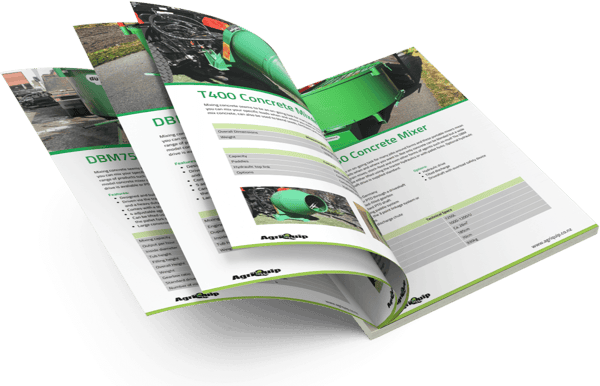

T400 Concrete Mixer Brochure (718 kb)         Operators/Parts Manual (3,173 kb)

Back to Top

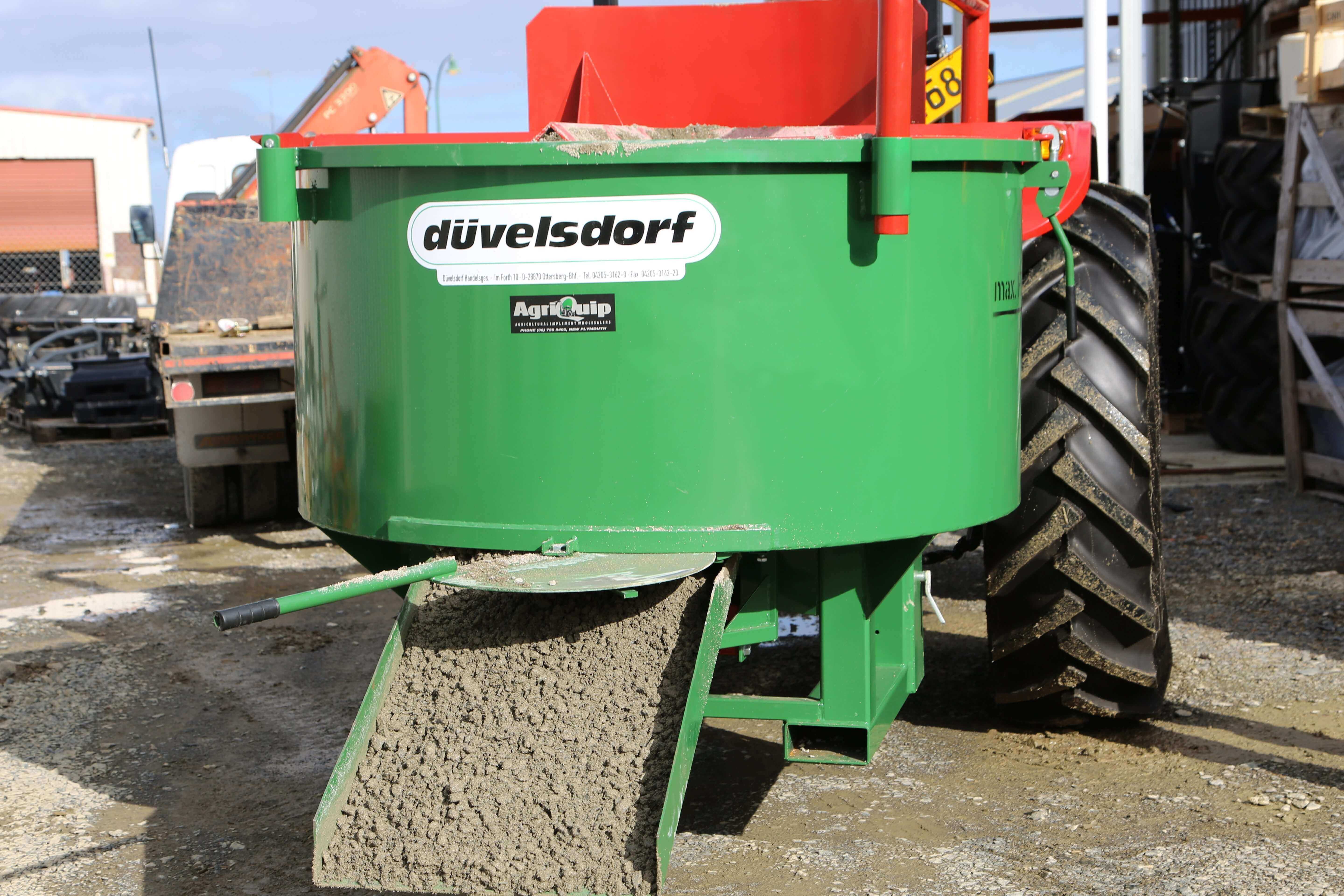

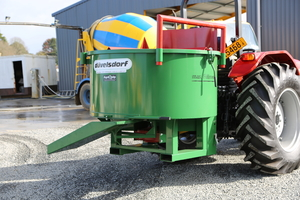

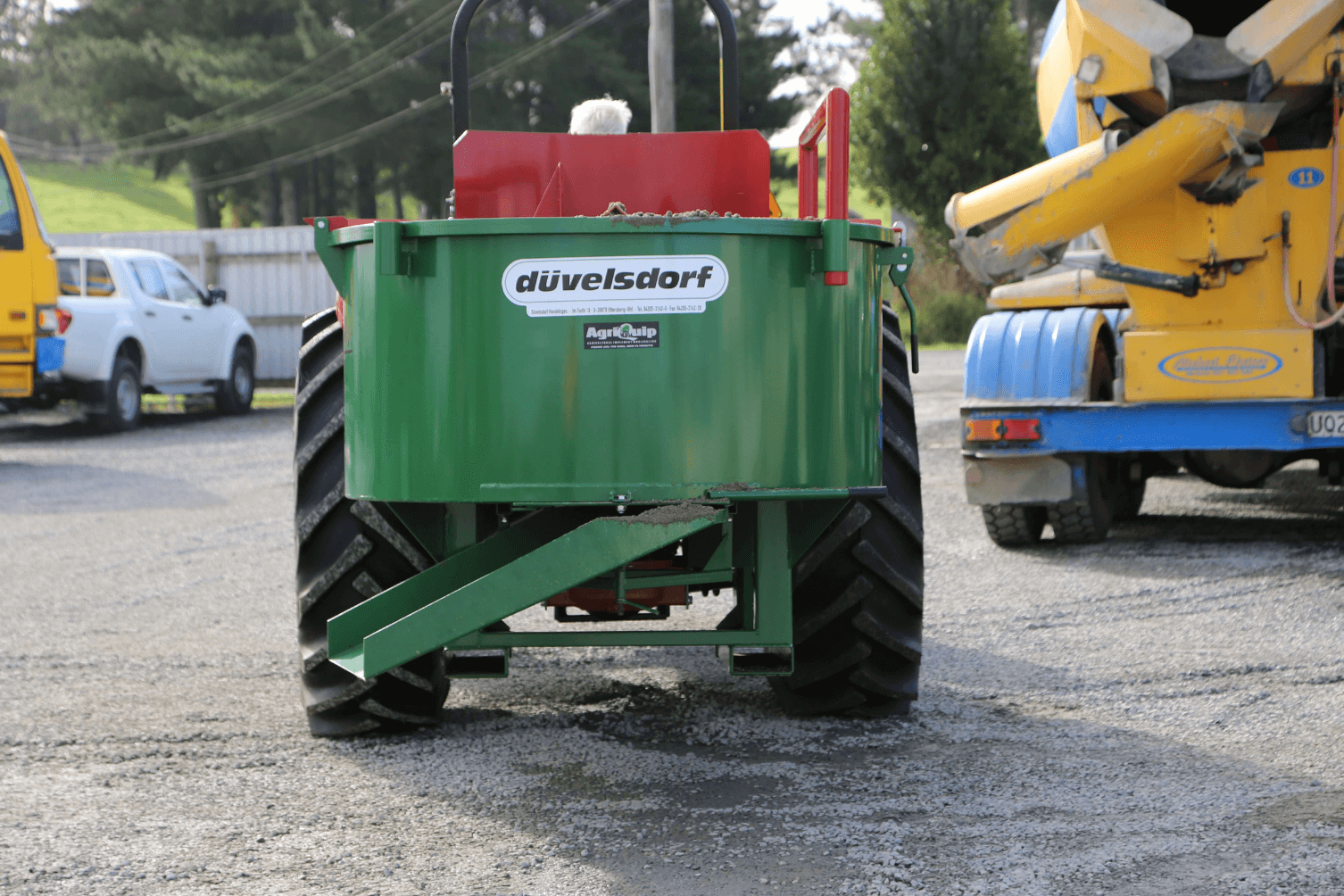

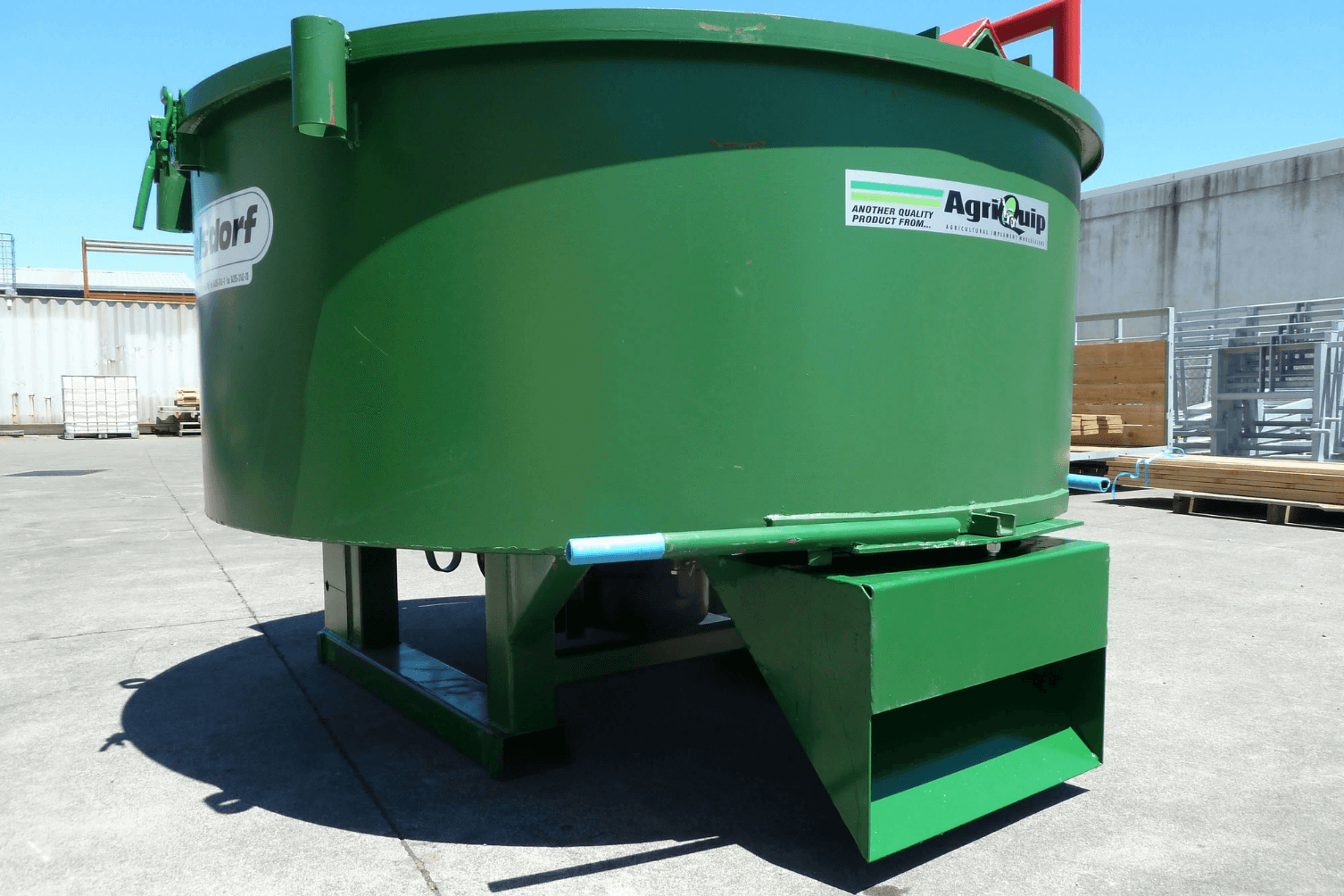

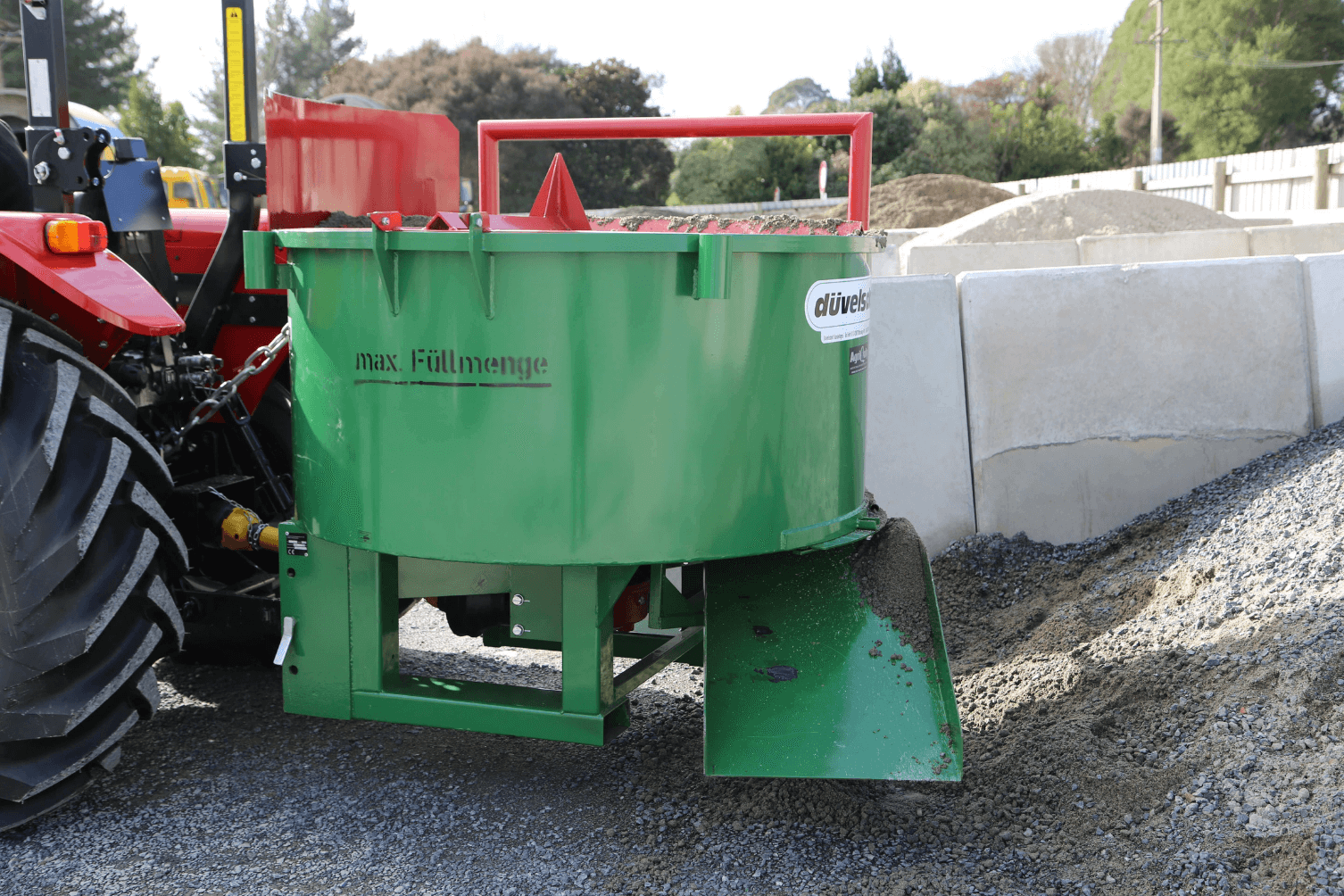

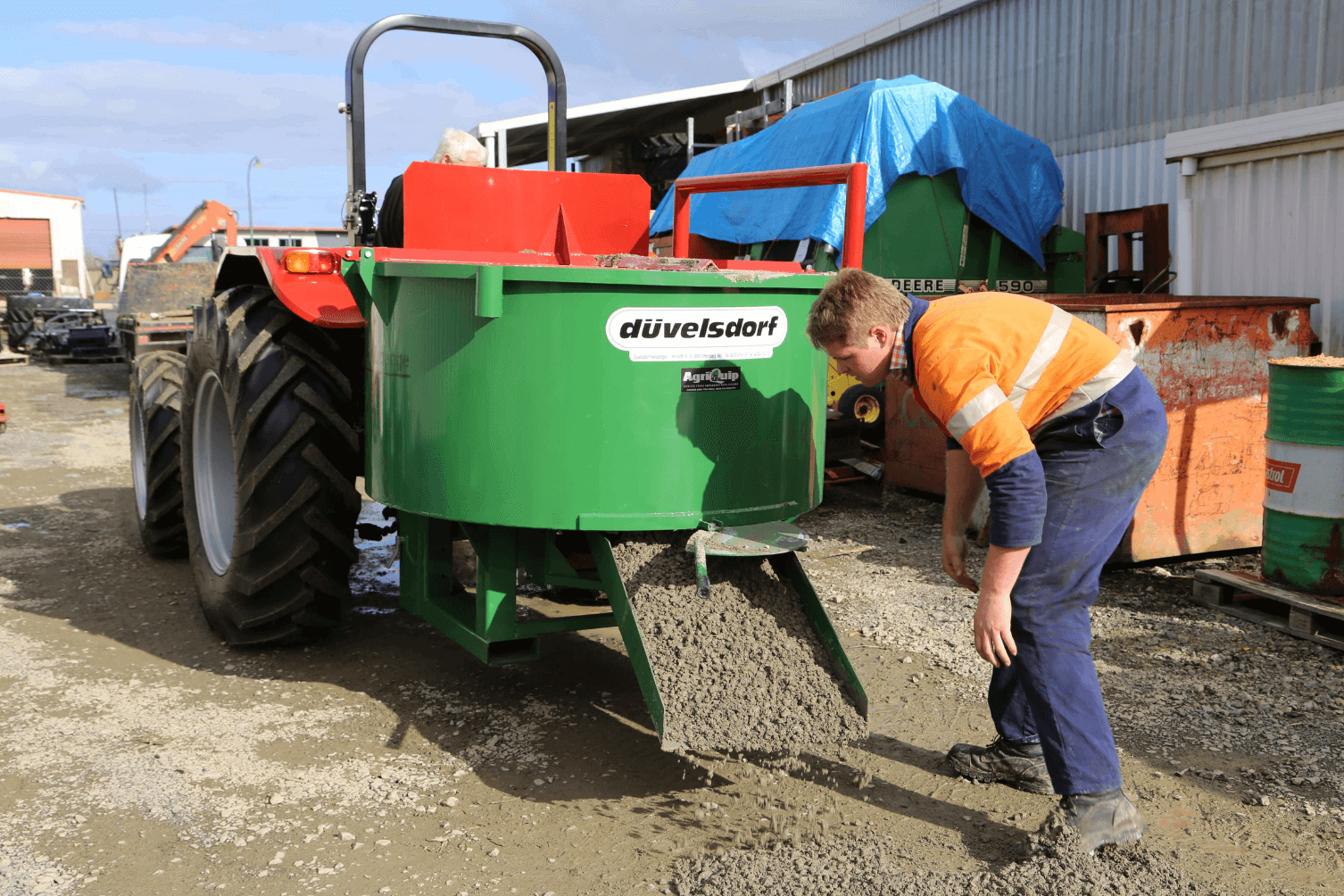

DBM 750 Mixer

Mixing concrete seems to be an ongoing task for many jobs around farms and these portable mixers mean you can mix your specific loads when and where you want to. Not only concrete can be blended but a wide range of products such as grain mixes, stock feed and even other forms of agents such as mud!

The DBM 750 concrete mixer can be used for quick, convenient, inexpensive and high quality production of large quantities of concrete, mortar and screed. The concrete mixer can either be lifted using the tractor hydraulics or with pallet forks. Optional hydraulic drive is available or PTO shaft is supplied standard.

FEATURES

  • • Robust workmanship
  • • Designed & built in Germany
  • • Driven via the tractor PTO through a driveshaft and a heavy duty oiled filled gearbox
  • • Comes standard with PTO shaft
  • • 4 adjustable agitating paddle system
  • • Can be lifted using the 3 point linkage system or the pallet fork slots
  • • Large convenient discharge chute
  • • Powder Coated

SPECIFICATIONS

DBM 750
Mixing Capacity 0.75 m3
Output Per Hour Ca. 16 m3
Inside Diameter 150 cm
Tub Height 70 cm
Filling Height 40 - 45 cm
Overall Height 125 cm
Weight 570 kg
Gearbox Ratio 1:8
Standard Drive Type                                  PTO Shaft
No. of Mixing Paddles 4

OPTIONS

  • • Hydraulic drive
  • • Tilted discharge
  • • Driveshaft with overload safety device

PHOTO GALLERY

(click photo to enlarge)






DOWNLOADS

DBM 750 Mixer Brochure (1,216 kb)                 Operator/Parts Manual (2,612 kb)

Back to Top

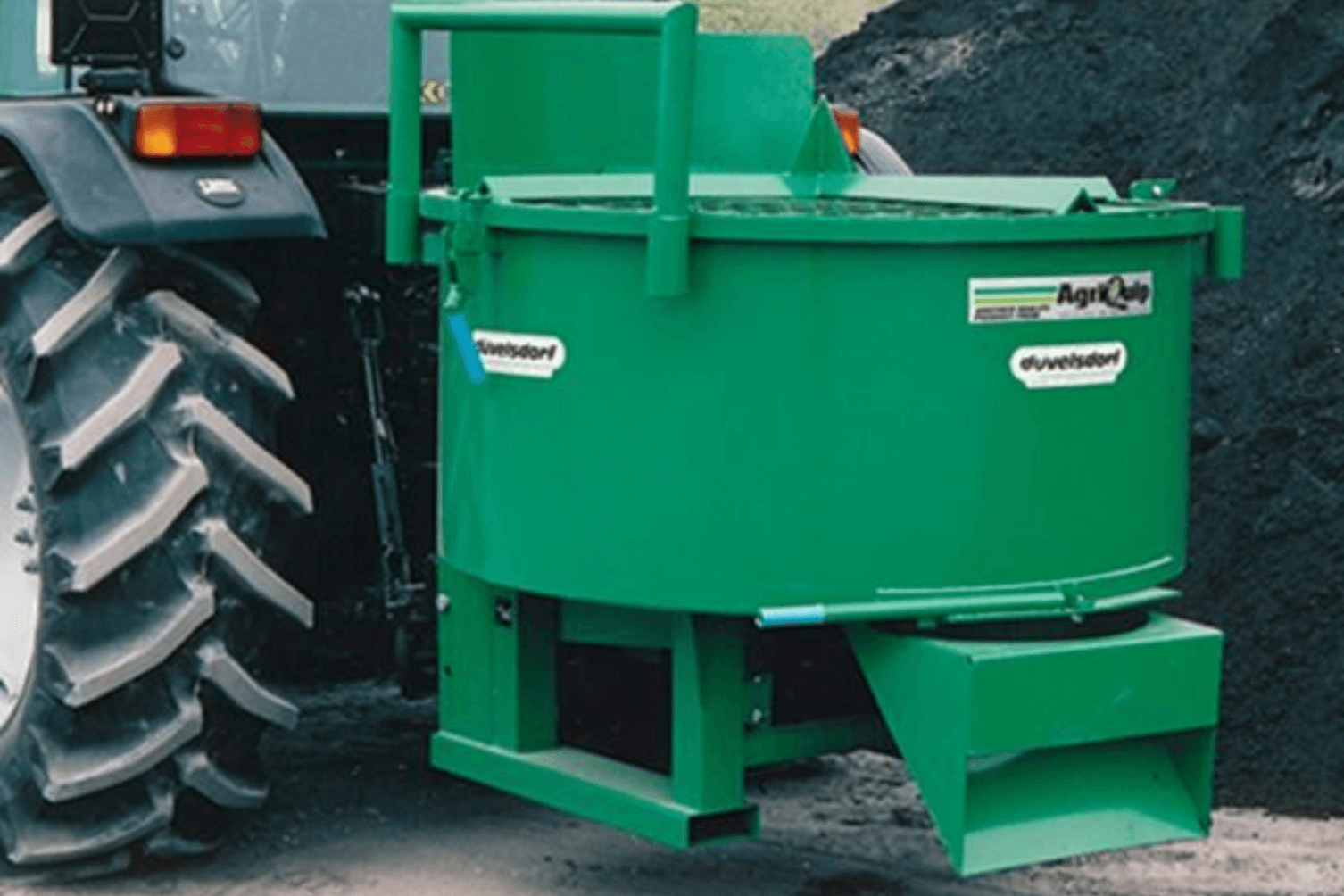

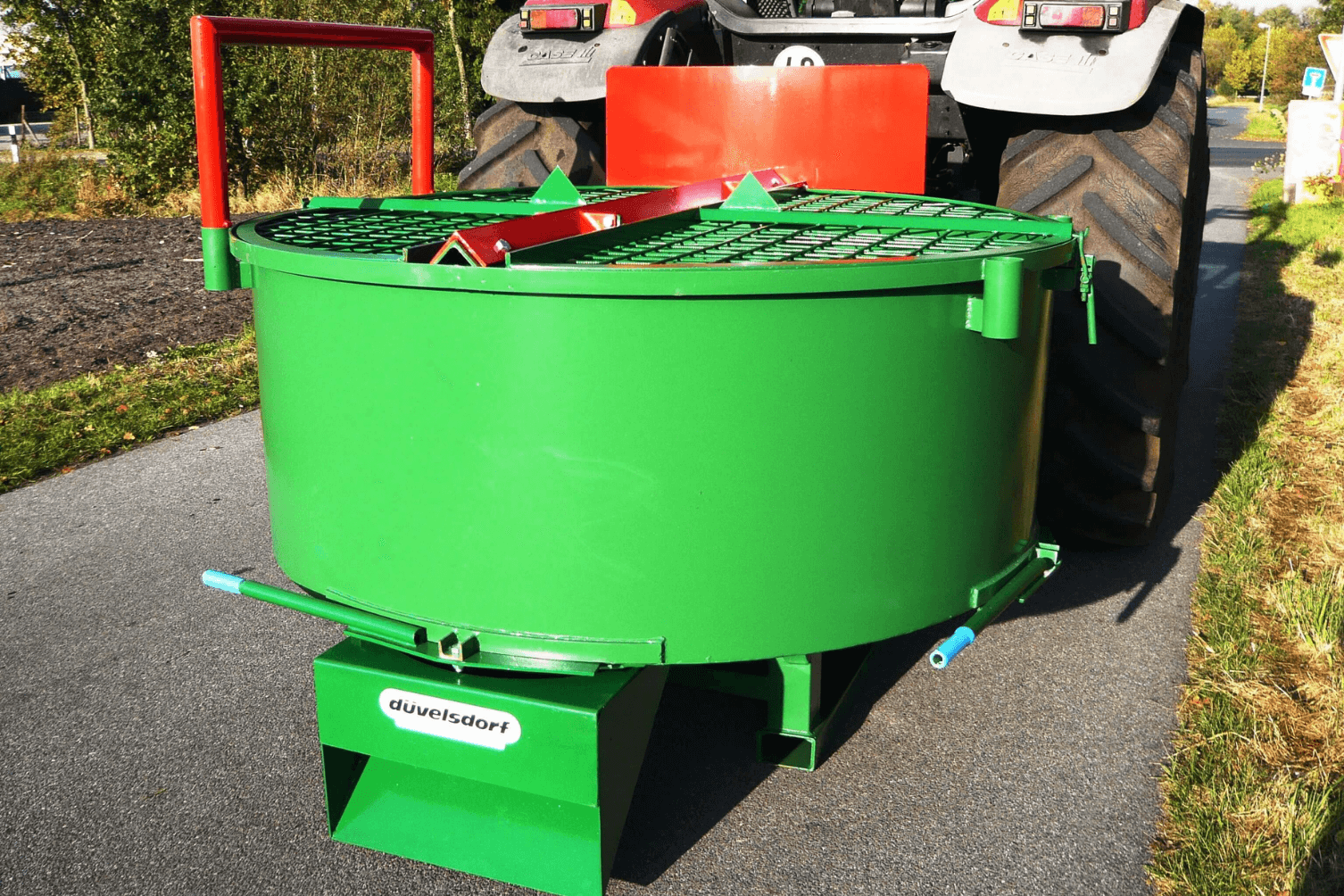

DBM 1250 Mixer

Mixing concrete seems to be an ongoing task for many jobs around the farm and these portable mixers mean you can mix your specific loads when and where you want to. Not only concrete can be blended but a wide range of products such as grain mixes, stock-feed and even other forms of agents such as mud!

The DBM model concrete mixer can be either lifted using the tractor hydraulics or with pallet forks. Optional hydraulic drive is available or PTO shaft drive is supplied standard.

FEATURES

  • • Designed & built in Germany
  • • Driven via the tractor PTO through a driveshaft and a heavy duty oiled-filled gearbox
  • • Comes standard with PTO shaft
  • • 5 adjustable agitating paddle system
  • • Can be lifted using the 3 point linkage system or the pallet fork slots
  • • Large convenient discharge chute

SPECIFICATIONS

DBM 1250
Mixing Capacity 1250 L
Engine RPM 1000 - 1200/U
Output Per Hour                                  Ca. 26 m3
Inside Diameter 185 cm
Tub Height 70 cm
Weight 930 kg

OPTIONS

  • • Hydraulic drive
  • • Tilted discharge
  • • Driveshaft with overload safety device

PHOTO GALLERY

(click photo to enlarge)







DOWNLOADS

DBM 1250 Mixer Brochure (695 kb)               Operator/Parts Manual (kb)
