Multicut Rotary Mowers

'The World Class Multicut Rotary Mower'

Award winning heritage of reliability, durability & performance.

The Multicut range has an award winning heritage of reliability & performance that sets them apart from the rest.

The durability designed into these mowers make them the first choice of intensive users throughout the world.

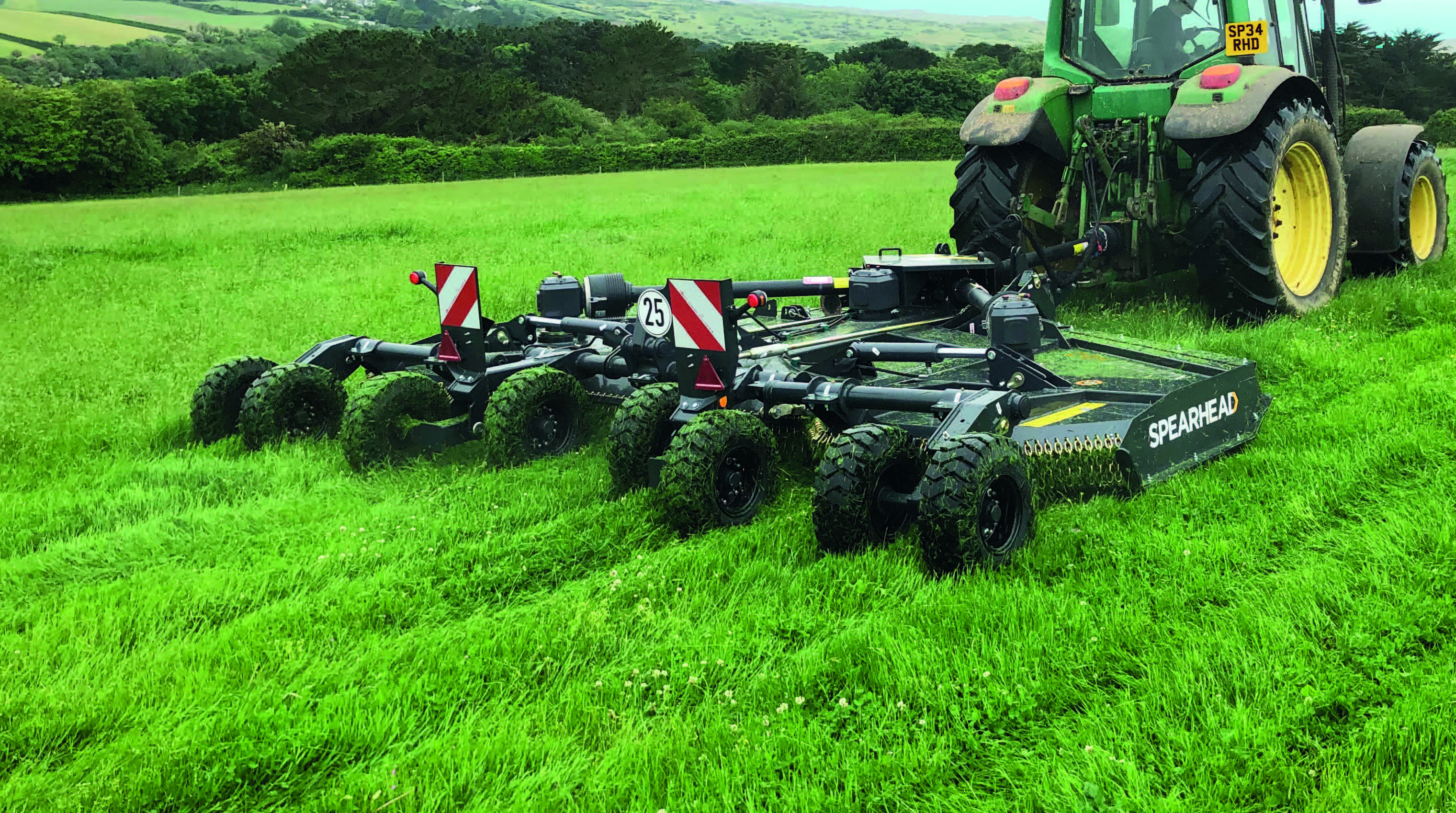

MULTICUT 460

The market leading MULTICUT 460 will exceed your expectations. With three HD3 rotors, each featuring the unique high lift blade design, you can expect ultimate suction and a fine mulch assuring a clean cut in even the heaviest growth.

Superior strength steel decks, with box section cross members, provide the rugged reliability and long lasting reputation attached to this machine today.

FEATURES

  • • 4.60 m cutting width
  • • 70 HP minimum tractor power requirement
  • • Heavy duty 250 HP input gearbox
  • • Heavy duty 111 HP rotor gearboxes
  • • Front & rear chain safety curtains
  • • Replaceable full length skids
  • • Rear lighting kit
  • • Floating wings
  • • Slip clutch protection
  • • 8 pneumatic rear wheels
  • • Blades designed in a star format to give an even controlled cut - perfect mulch result with 30% less power requirement
  • • Puncture resistant industrial tyres
  • • High strength steel deck construction
  • • 9 x heavy duty cutting blades (3 per rotor)

SPECIFICATIONS

MULTICUT 460
Cutting width 4.60 m
Overall width 4.80 m
Transport width 2.80 m
Machine weight* 2310 kg
Gearbox rating 250 HP & 111 HP
Cutting range 25 mm - 400 mm
Number of rotors 3
Number of blades 9 or 18
PTO protection Slip clutch
PTO speed 1000 rpm
Tractor power required**            70 HP

*Dependent on machine specification | ** Dependent on conditions

PHOTO GALLERY

(click photo to enlarge)

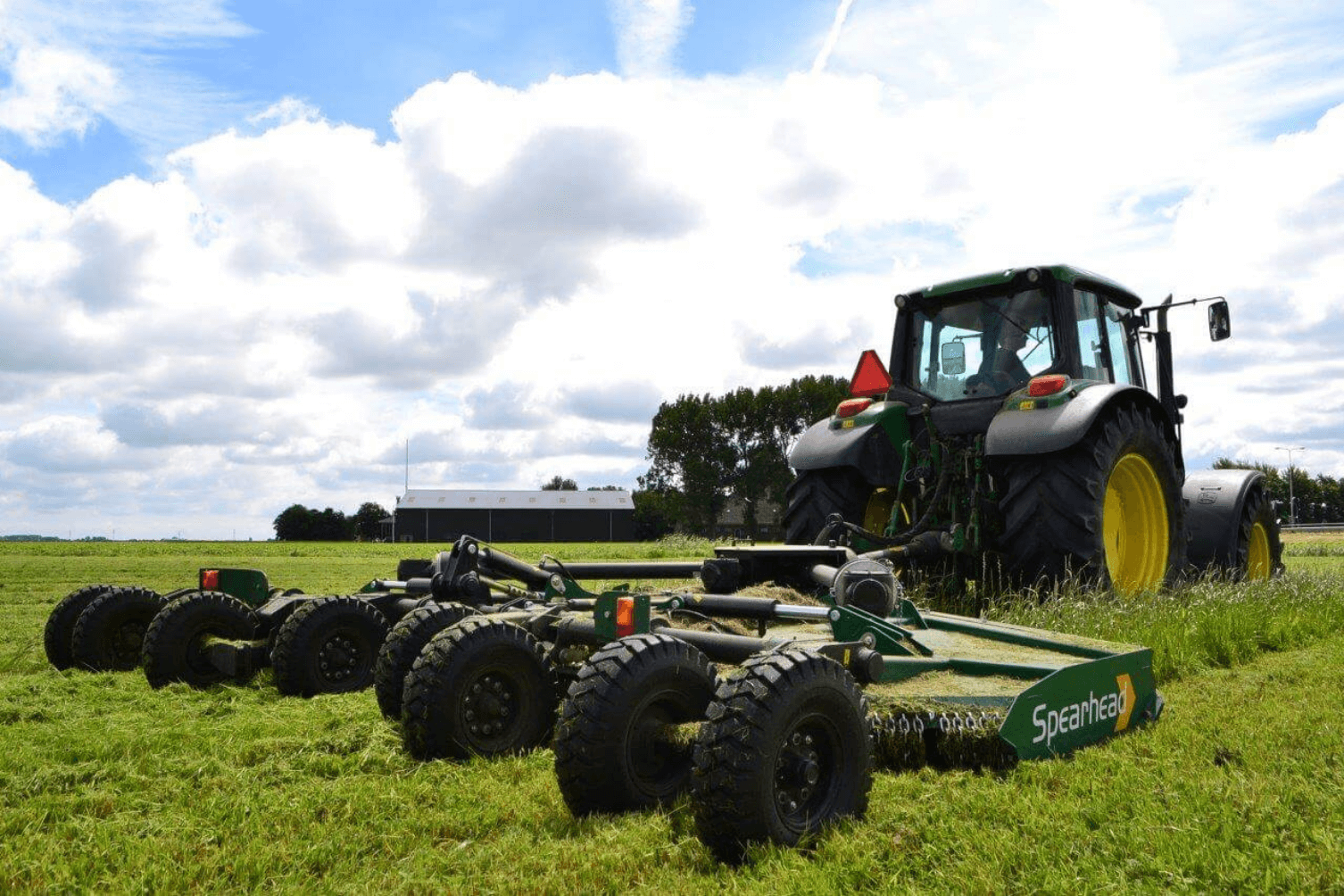

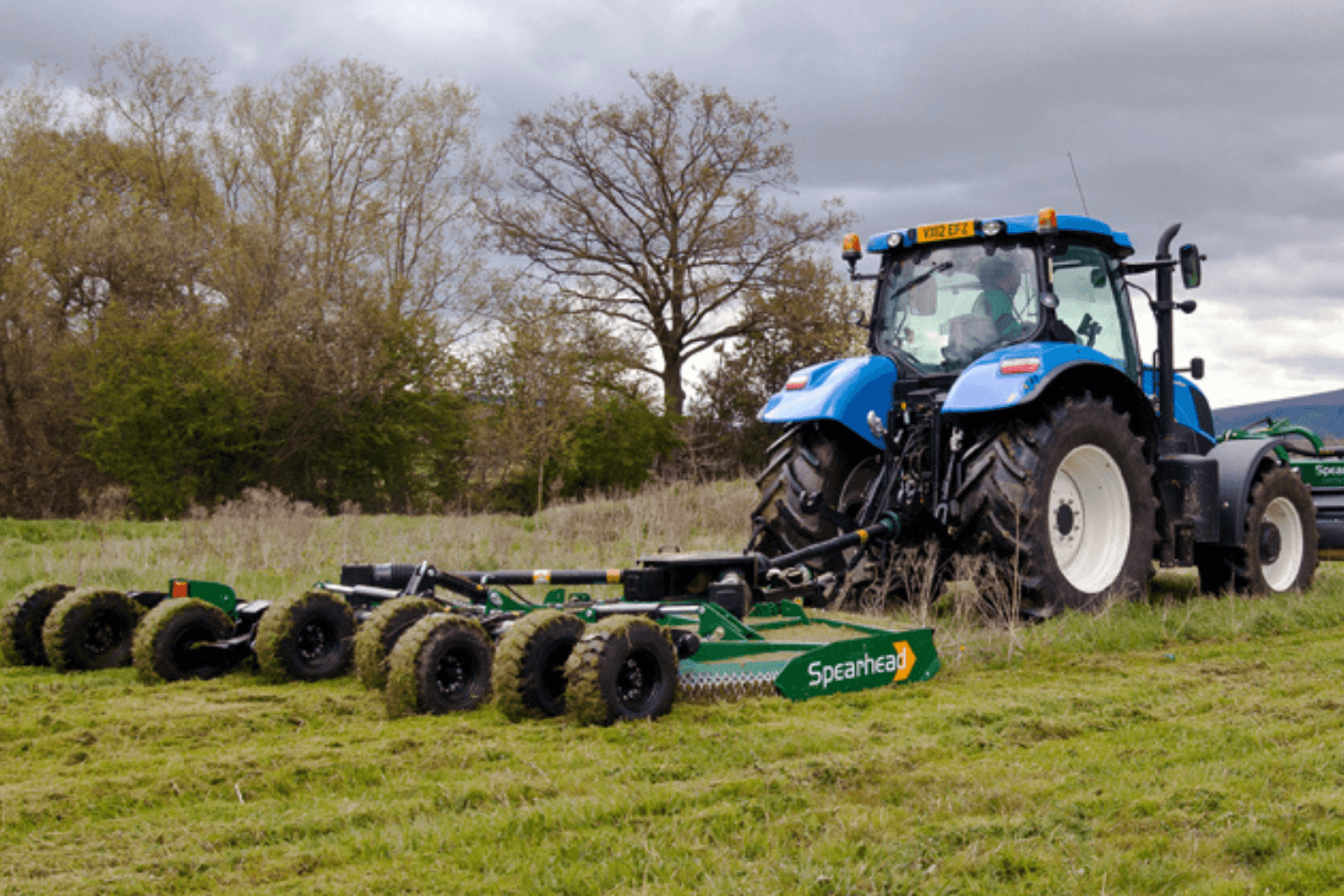

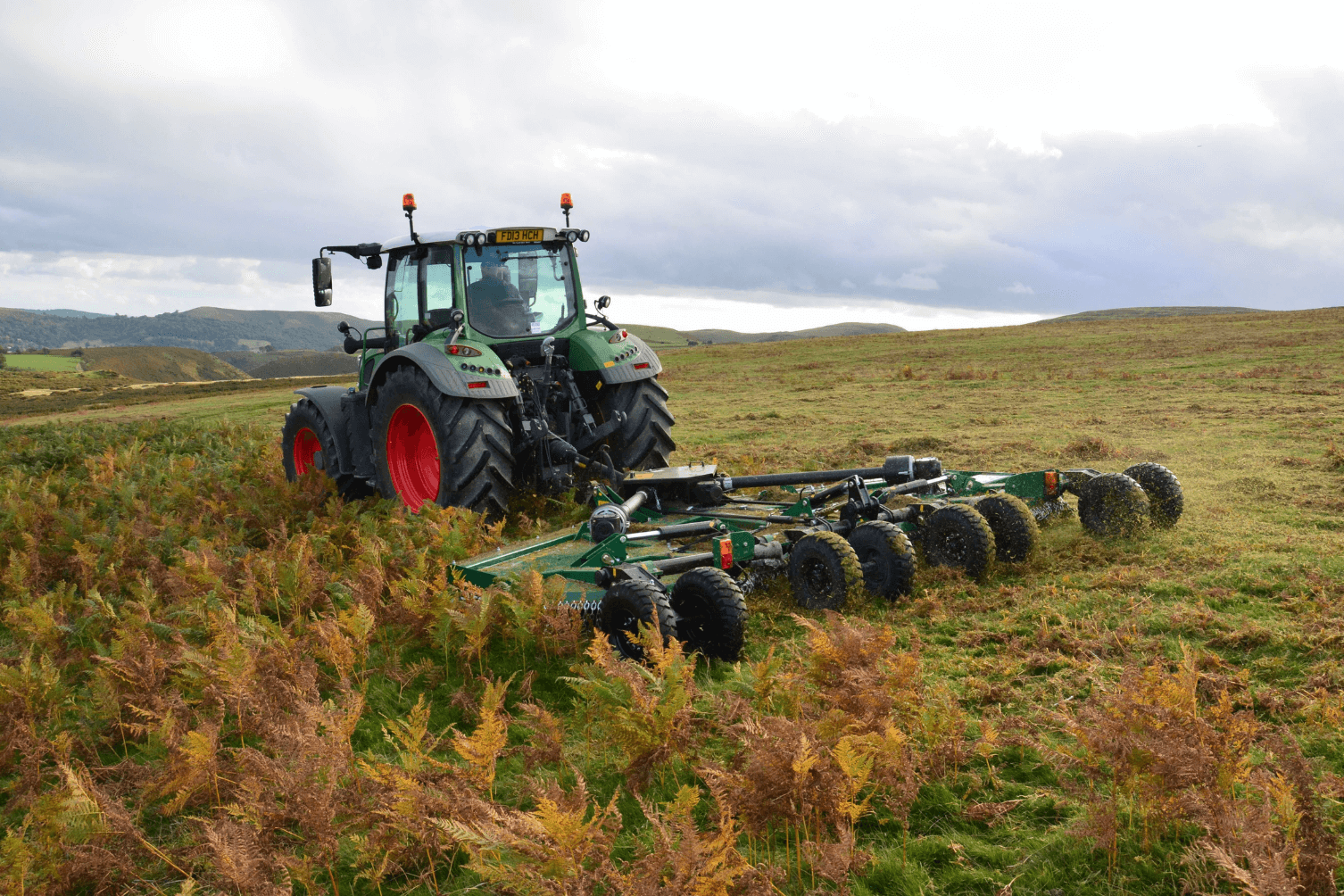

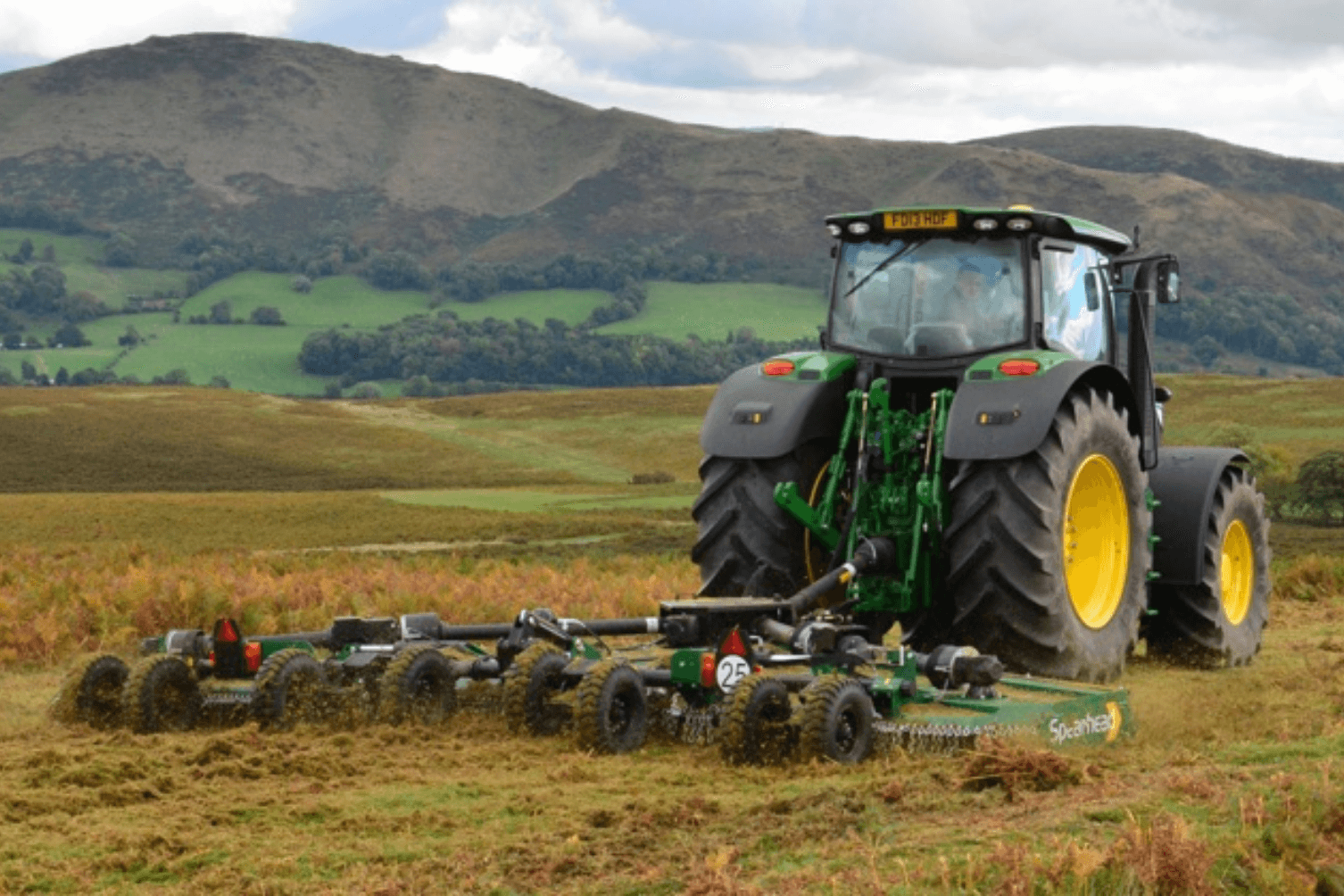

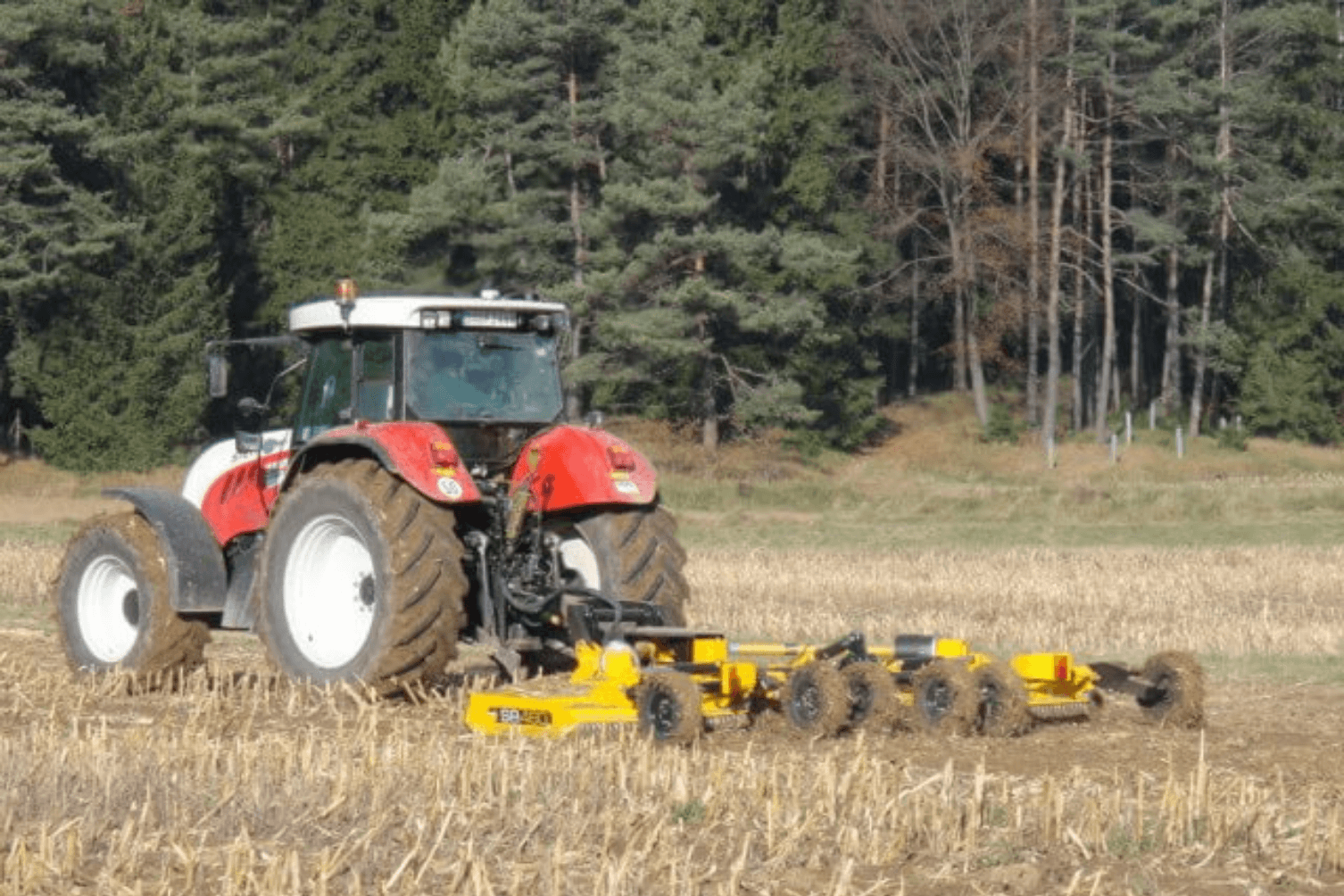

MULTICUT 460 IN ACTION

Back to Top


MULTICUT 620

Reaching even wider, the MULTICUT 620 gives 6.2 metres of cutting width to give an unbeatable spread and fine mulch action usually expected from a flail.

This high output 6.2 metre cutting width enables over 6 hectares per hour to be cleared.

Five rotors provide the cutting power, all arranged in a specific formation to ensure the best in reliability, durability and most importantly, cutting speed on the market.

With a size gearbox driveline, each with slip clutch protection, the power is evenly spread which also delivers exceptional reliability and durability.

A solid reputation makes the MULTICUT 620 a favourite for Airport & Municipal operations.

FEATURES

  • • 6.20 m cutting width
  • • 90 HP minimum tractor power requirement
  • • Heavy duty 250 HP input gearbox
  • • Heavy duty 111 HP rotor gearboxes
  • • Slip clutch protection
  • • 8 pneumatic rear wheels
  • • Puncture resistant industrial tyres
  • • Hydraulically controlled parallel linkage
  • • Front & rear safety curtains
  • • Replaceable full length skids
  • • Blades designed in a star format to give an even controlled cut - perfect mulch result with 30% less power requirement
  • • High strength steel deck construction
  • • Rear lighting kit
  • • Floating wings
  • • 15 x heavy duty cutting blades (3 per rotor)
  • • Anti-scalp rotor protection dishes

SPECIFICATIONS

MULTICUT 620
Cutting width 6.20 m
Overall width 6.40 m
Transport width 2.80 m
Machine weight* 2850 kg
Gearbox rating 250 HP & 111 HP
Cutting range 25 mm - 400 mm
Number of rotors 5
Number of blades 15 or 30
PTO protection Slip clutch
PTO speed 1000 rpm
Tractor power required**       90 HP
*Dependent on machine specification | ** Dependent on conditions

PHOTO GALLERY

(click photo to enlarge)

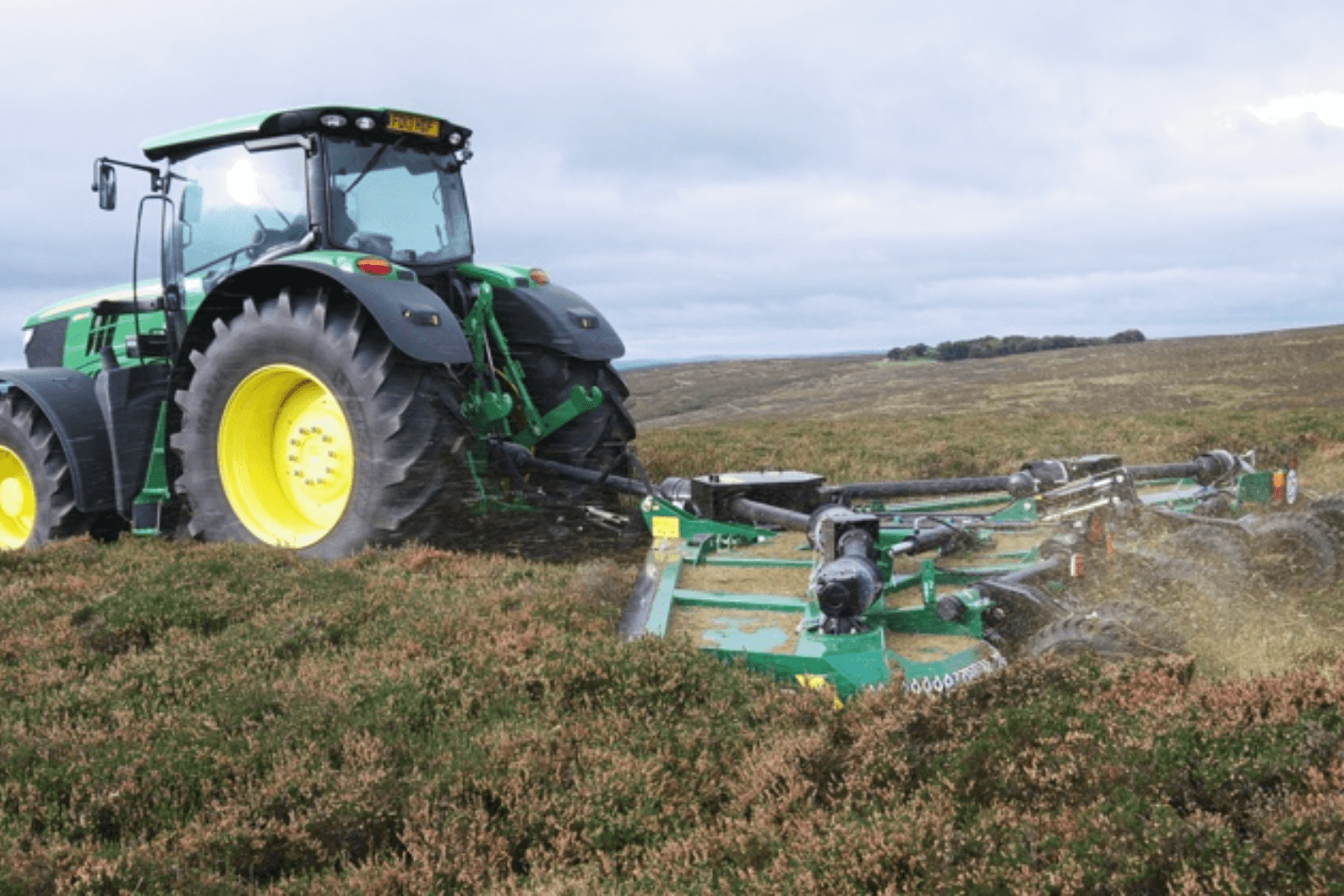

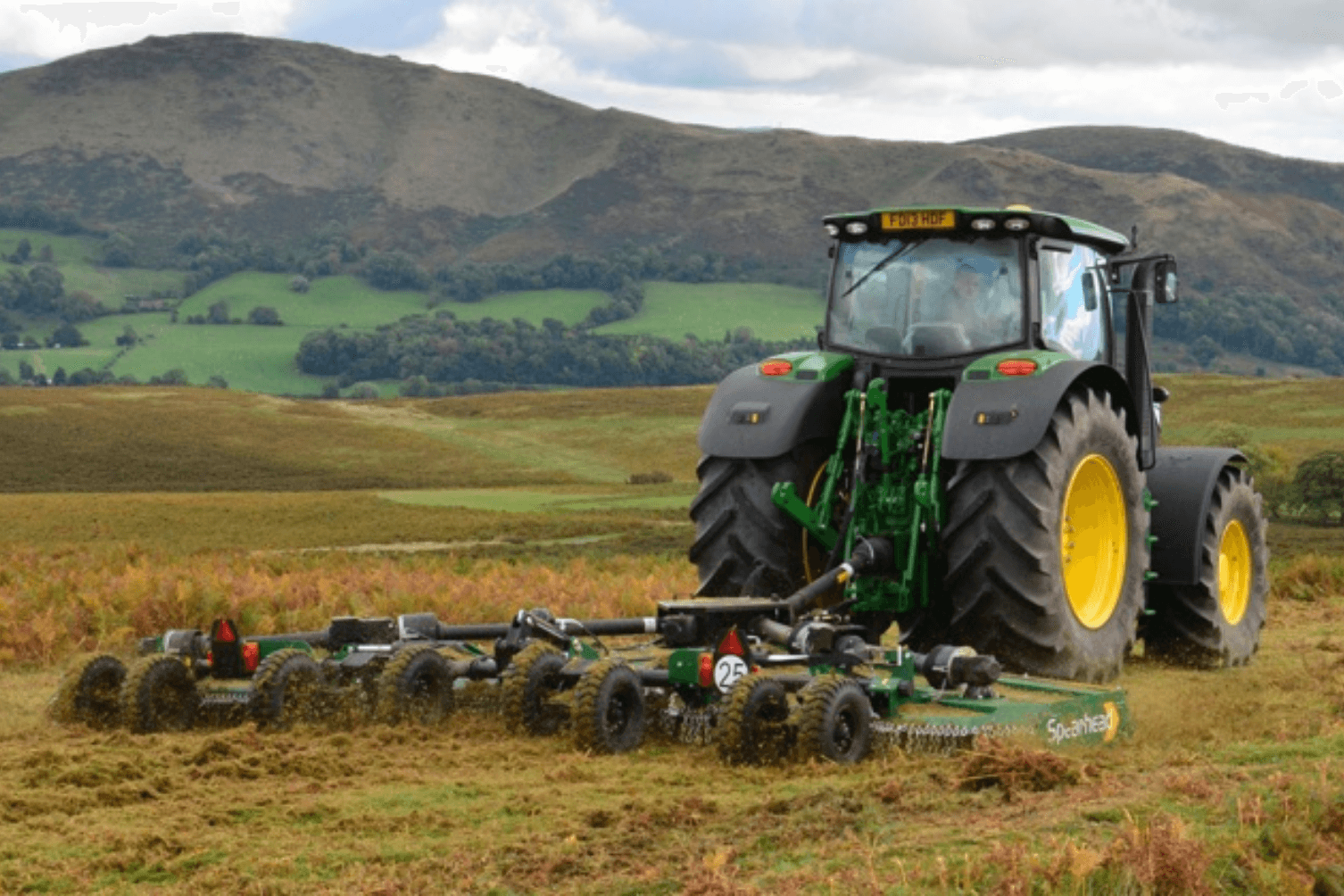

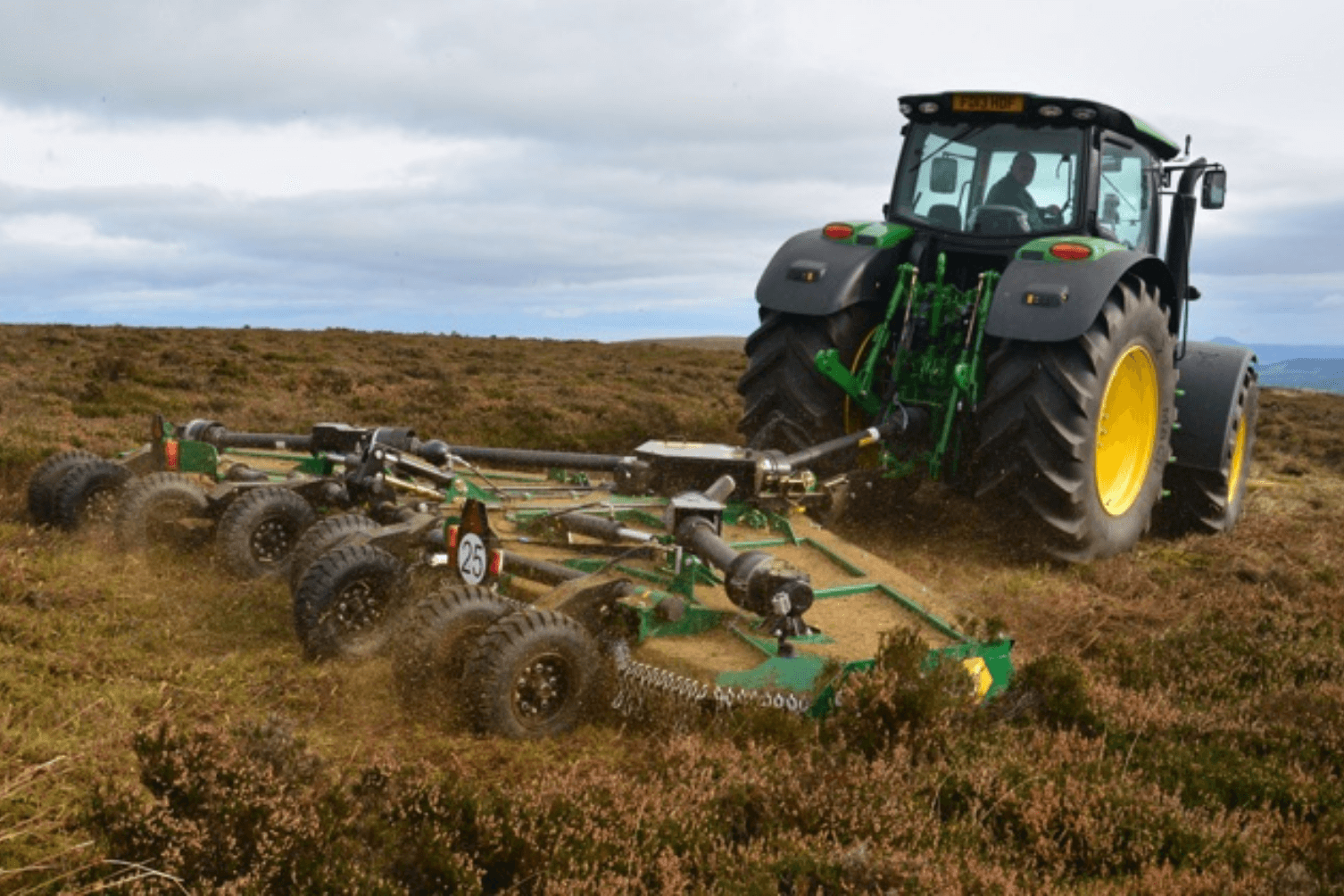

MULTICUT 620 IN ACTION
