Click on a product picture for more information

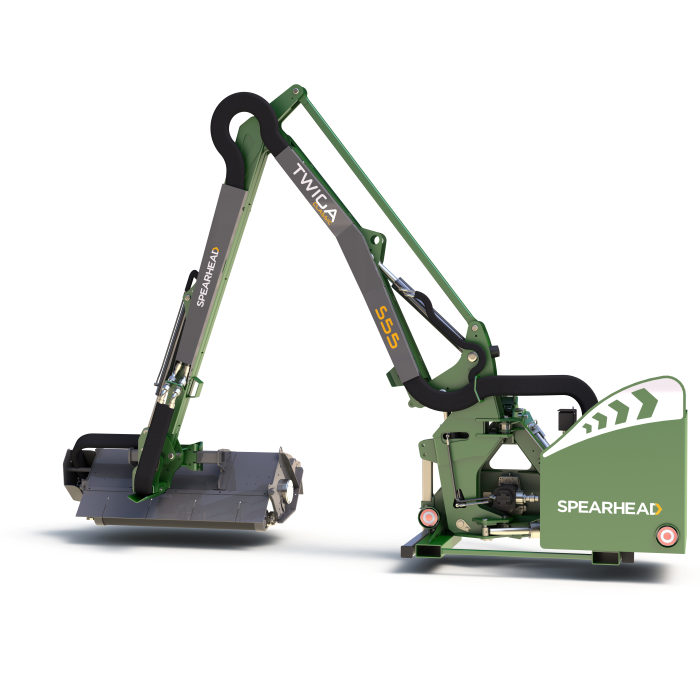

TWIGA Classic

TWIGA 500

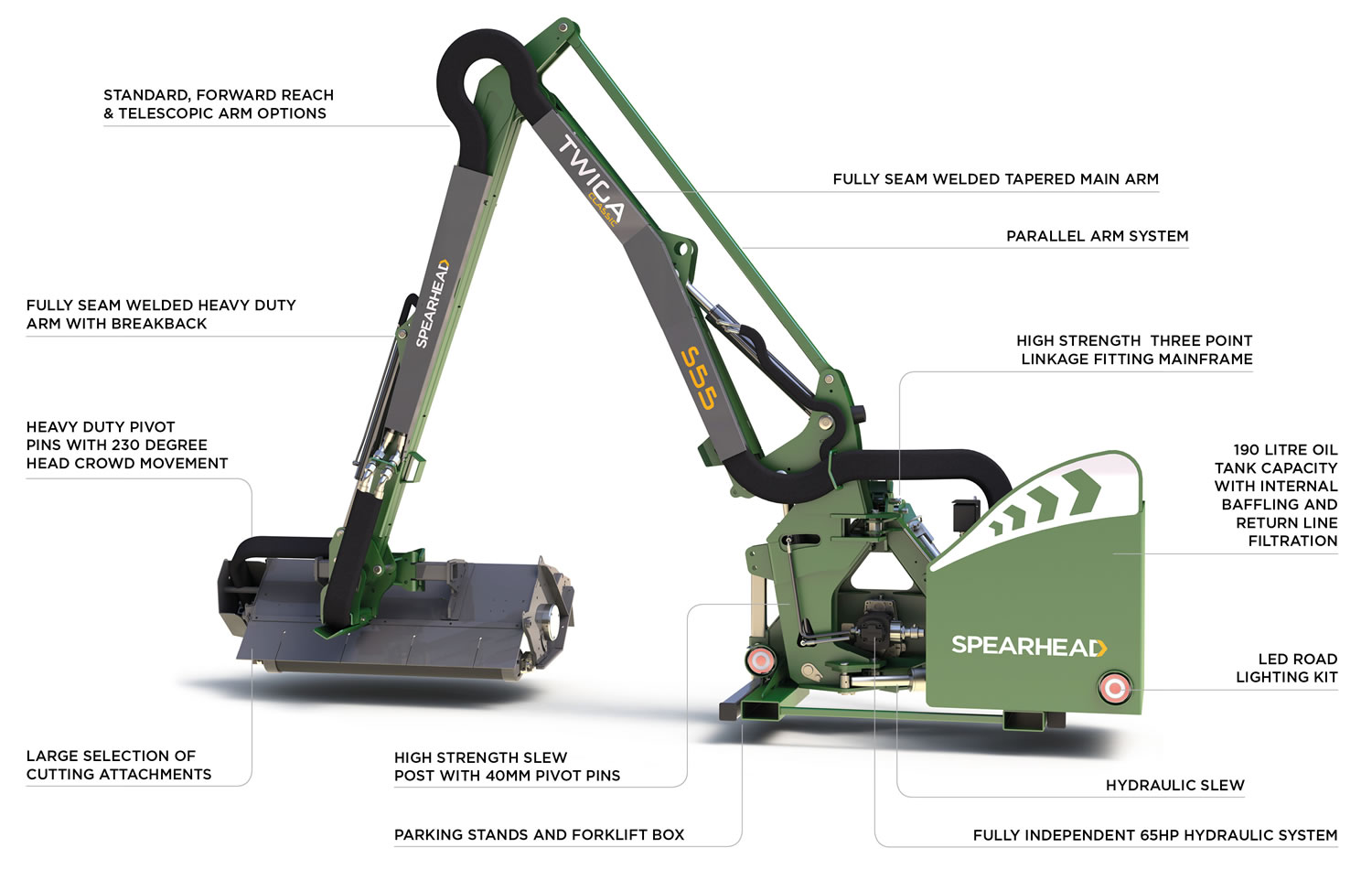

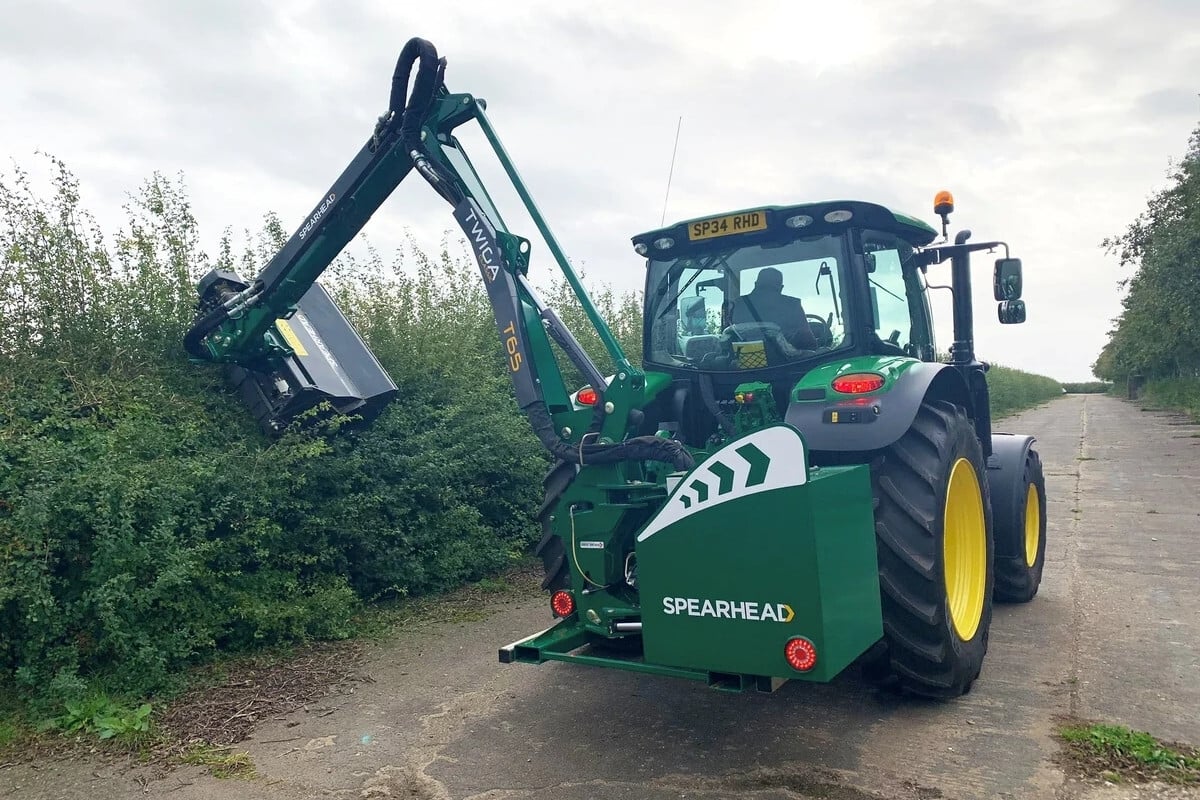

Spearhead's TWIGA Classic series reach mower incorporates a strong combination of power and flair with a stripped back look that contributes to the best value for money machine on the market.

The TWIGA Classic series satisfies the requirements of a host of different markets and applications whilst building on the same robust technology as large models in the Spearhead range.

Designed for farmers, contractors and local authorities - the TWIGA Classic range offers long term output, robustness and durability.

As with all models in the Spearhead range the TWIGA Classic features a fully independent hydraulic system providing the optimum flow of oil to arm control functions and the flailhead drive motor.

Parallel arm action as standard makes the TWIGA Classic simple to use as the arm geometry maintains the same cutting head angle as it moves in and out.

Safety protection is offered in the form of a hydraulic break out ram which, when activated, lifts the cutting head clear of obstructions and automatically returns it once the obstruction has been cleared.

FEATURES

  • • 5.0 m reach
  • • 60 HP minimum tractor requirement
  • • Three point linkage mounting
  • • Parallel arm geometry
  • • Fully independent 66 HP hydraulic system
  • • 140 - 240 litre oil capacity
  • • Hydraulic safety breakout
  • • Low power requirement

SPECIFICATIONS

TWIGA 500
Maximum reach         5.00 m
Machine weight* 1170 kg
Transport width 2.40 m
Oil tank capacity 190 Litres
Tractor power required**                      70 HP
Tractor weight required**                              2500 kg

*Dependent on machine specification (including oil, excluding flailhead or attachment)

**Dependent on conditions

PHOTO GALLERY

(click photo to enlarge)




Back to Top

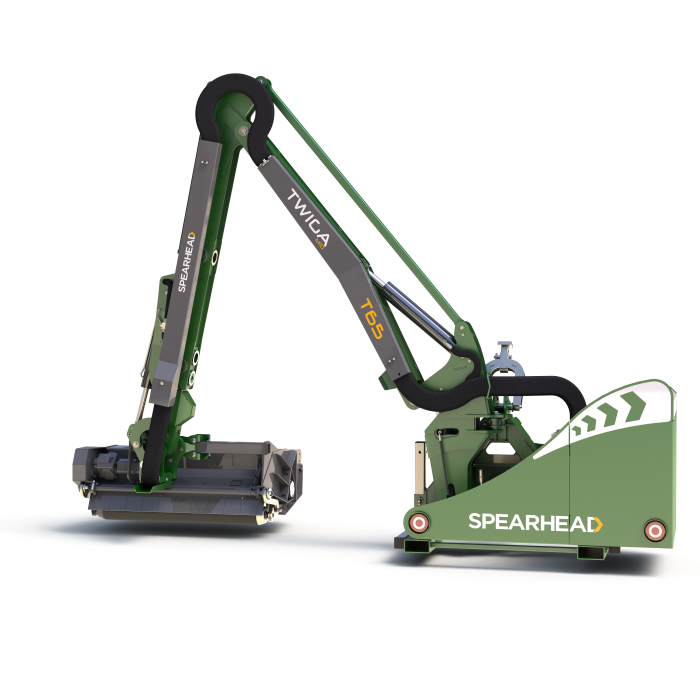

TWIGA Mid

TWIGA 555

Combining many years of hedgecutter design with the latest technology, Spearhead's best selling, TWIGA Mid series reach mower provides exceptional performance, reliability, durability and ease of operation.

Designed for large scale farmers, contractors and local authorities - the TWIGA Mid range offers, Spearhead's most advanced control systems, long term output, robustness and durability time honed and proven in conditions around the world.

Power is delivered by a potent 66 HP fully independent hydraulic system favoured by the most demanding of cutting professionals.

Parallel arm action is fitted as standard and makes the TWIGA Mid series simple to use as the arm geometry maintains the same cutting head angle as it moves in and out.

Safety protection is offered in the form of a hydraulic break out ram which when activated lifts the cutting head clear of obstructions, and automatically returns it once the obstruction has cleared.

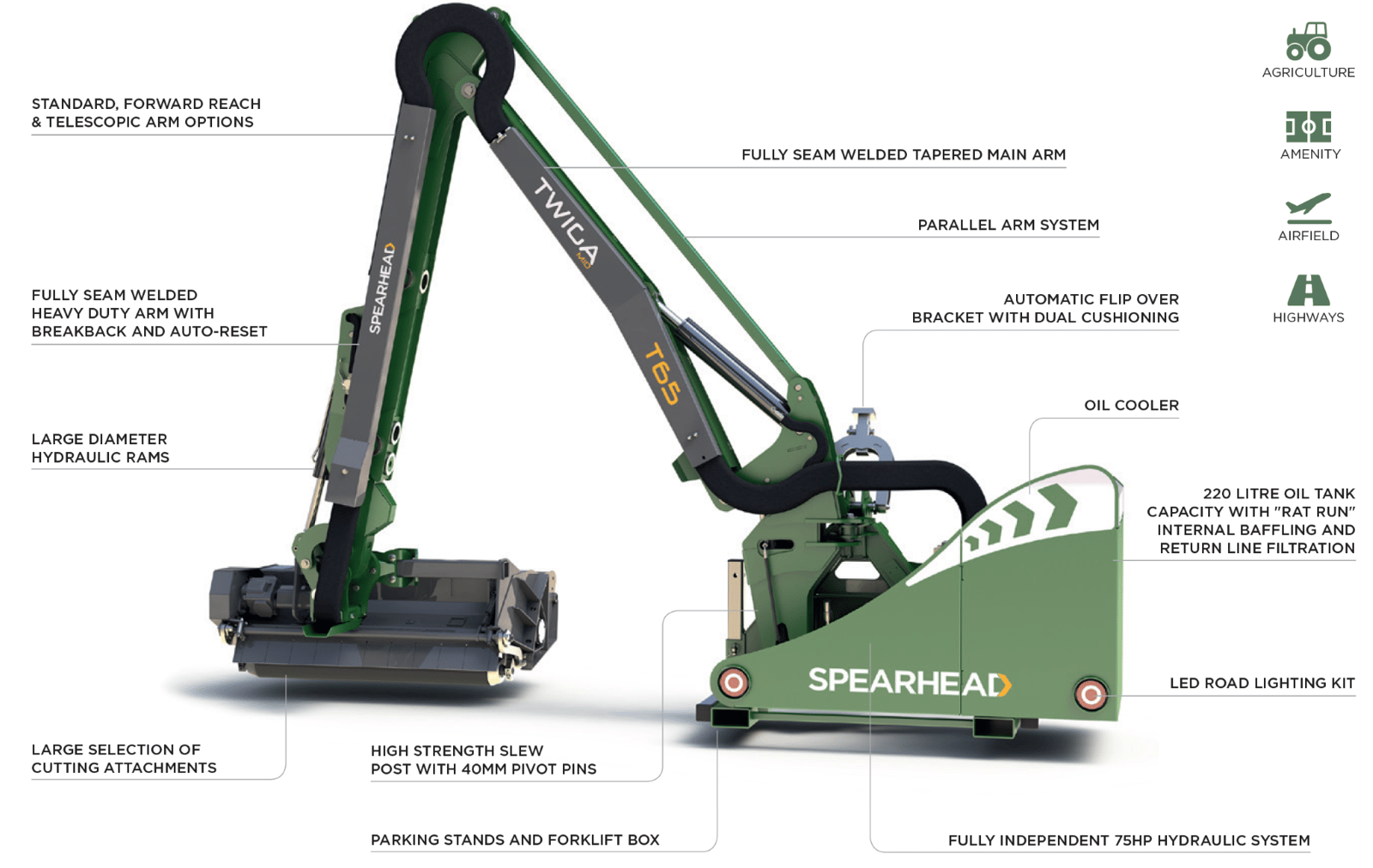

FEATURES

  • • 5.5 m reach
  • • 90 HP minimum tractor requirement
  • • Three point linkage or axle bracket mounting
  • • Parallel arm geometry
  • • 220 litre oil capacity
  • • Hydraulic safety breakout
  • • Fully independent 66 HP hydraulic system
  • • LED rear lighting kit

SPECIFICATIONS

TWIGA 555
Maximum reach 5.50 m
Machine weight*                   1360 kg
Transport width 2.60 m
Oil tank capacity  220 Litres
Tractor power required** 90 HP
Tractor weight required**                             3500 kg

*dependent on machine specification (including oil, excluding flailhead or attachment)

**dependent on conditions

PHOTO GALLERY

(click photo to enlarge)




Back to Top


TWIGA Pro

TWIGA PRO 600T, TWIGA PRO 700 T

The TWIGA Pro series is the professional task master designed to cope with the toughest of jobs. Featuring a host of innovative design features the TWIGA Pro is an extremely robust, high specification reach mower built to suit the specialist contractor and large scale farmer.

Delivered with an appearance that sets it apart, the TWIGA Pro also represents the latest standards in advancing performance, reliability, durability and ease of operation in the modern reach mower sector.

Parallel arm action is fitted as standard and makes the TWIGA Pro series simple to use as the arm geometry maintains the same cutting head angle as it moves in and out.

Safety protection is offered in the form of a hydraulic break out ram which, when activated, lifts the cutting head clear of obstructions and automatically returns it once the obstruction has been cleared.

FEATURES

  • • 6.5 m & 7.0 m reach
  • • 100 HP minimum tractor requirement
  • • Three point linkage or axle bracket mounting
  • • Parallel arm geometry
  • • Fully independent 80 HP hydraulic system
  • • 220 litre oil capacity
  • • Hydraulic safety breakout
  • • LED rear lighting kit

SPECIFICATIONS

TWIGA 650 T          TWIGA 700 T
Maximum Reach                 6.50 m 7.0 m
Machine weight* 1650 kg 1720 kg
Transport width 2.50 m 2.50 m
Oil tank capacity 220 litres 220 litres
Tractor power required**                        120 HP - 150 HP                  140 HP - 170 HP
Tractor weight required** 5000 kg 6000 kg

*dependent on machine specification (including oil, excluding flailhead or attachment)

**dependent on conditions

PHOTO GALLERY

(click photo to enlarge)
