Woodsplitters

Click on a product picture below for more information




Hydrasplitter 722

Whether you prefer splitting wood vertically or horizontally - here's the answer - a splitter with both options ready for action by removing a pin. A fully independent splitter with its own 7HP engine and hydraulic system. Fully transportable and simple to operate.

SPECIFICATIONS

Dimensions                         2003 mm L x 940 mm W x 673 mm H
Engine 7HP Briggs & Stratton
Capacity 22 Ton
Hydraulics 2 Stage Pump, 41L/min
Ram Size 100 mm x 600 mm
Weight 240 kg
Tyres & Wheels 4.00 x 4.8 x 8
Hydraulic Tank                       17 - 21 Litres (supplied dry)

PHOTO GALLERY

(click photo to enlarge)





DOWNLOADS

Hydrasplitter 722 Brochure (636 kb)           Operator/Parts Manual (1,647kb)

Back to Top

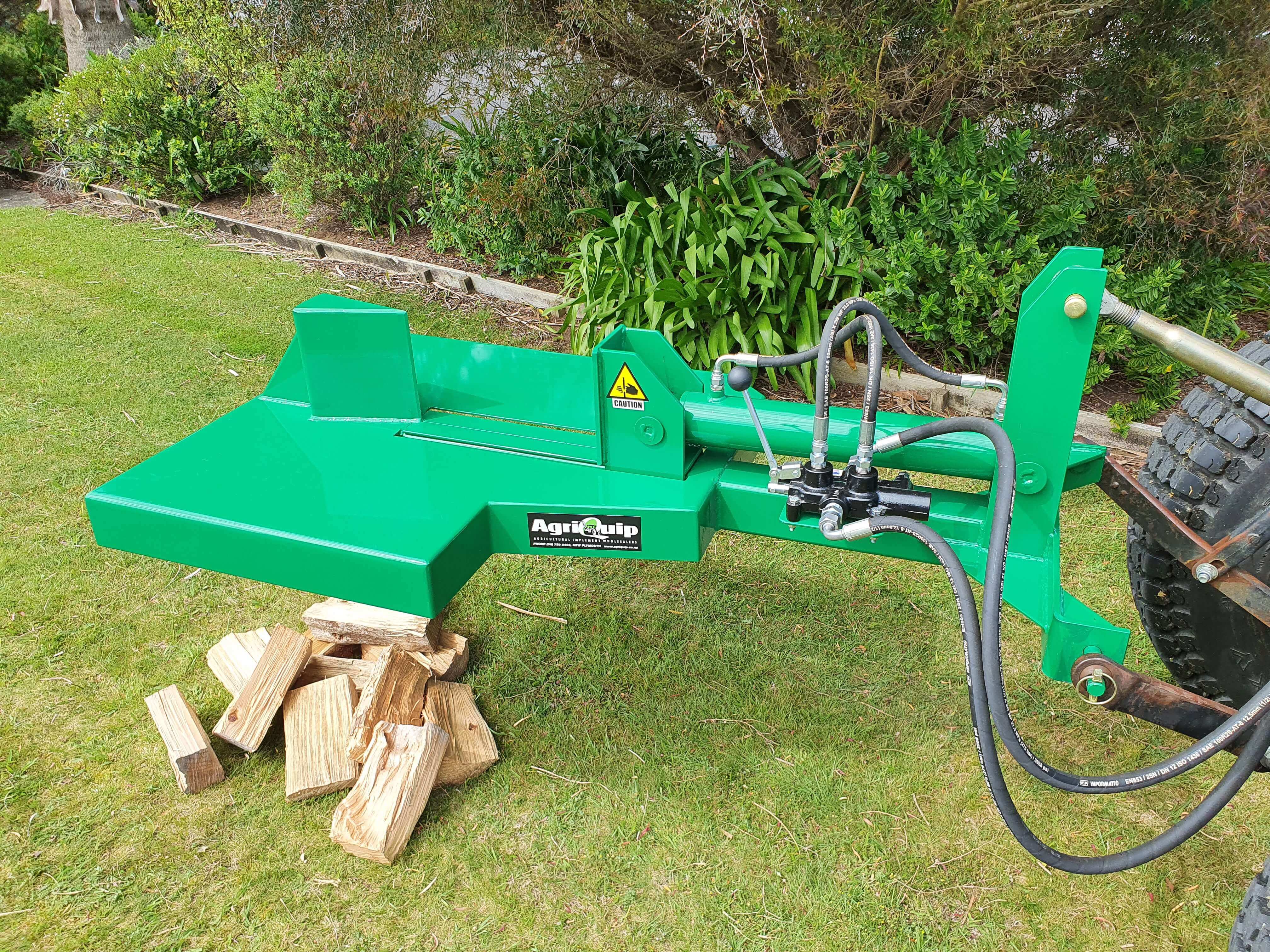

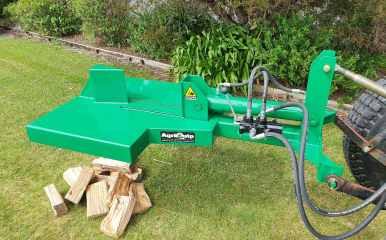

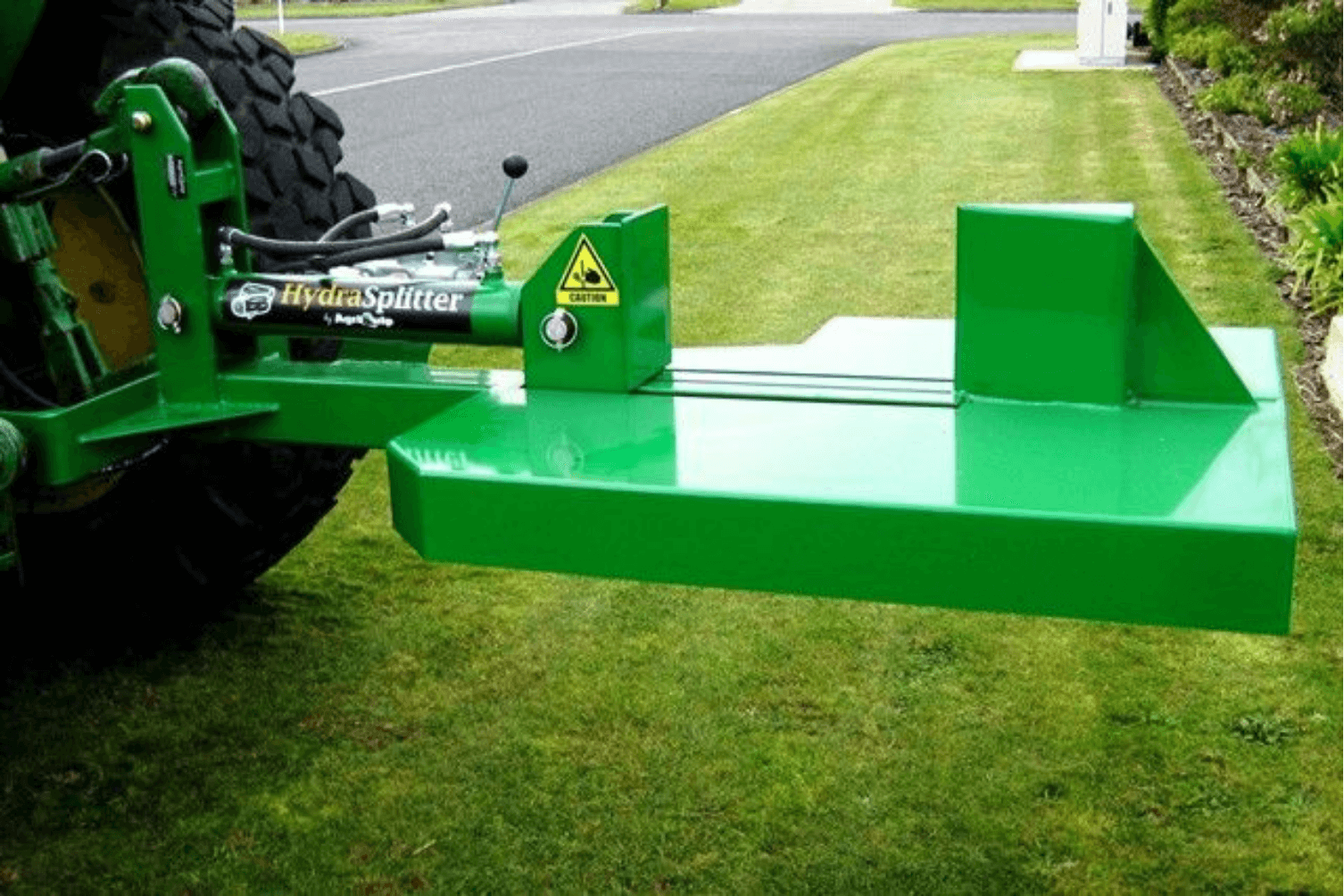

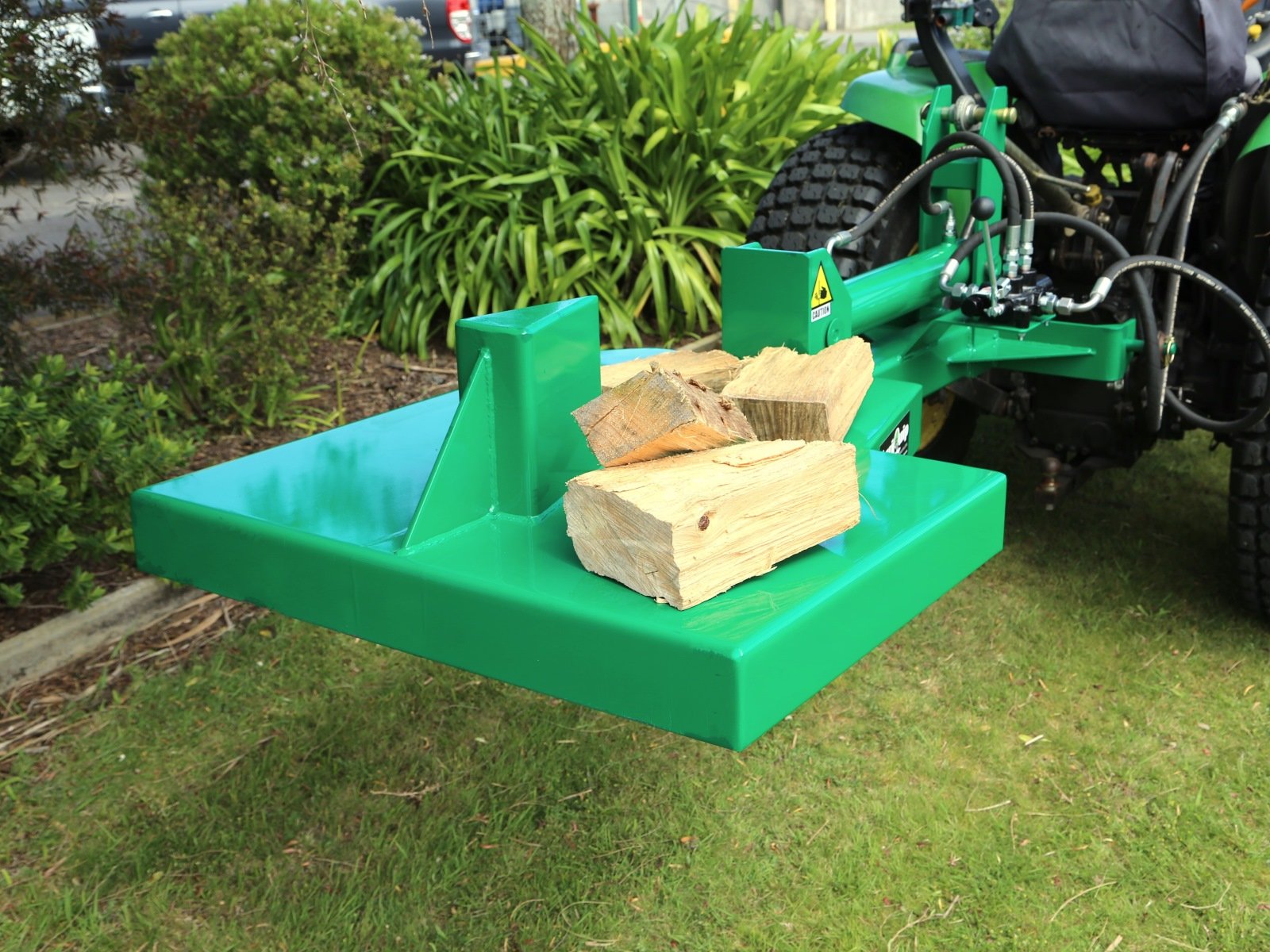

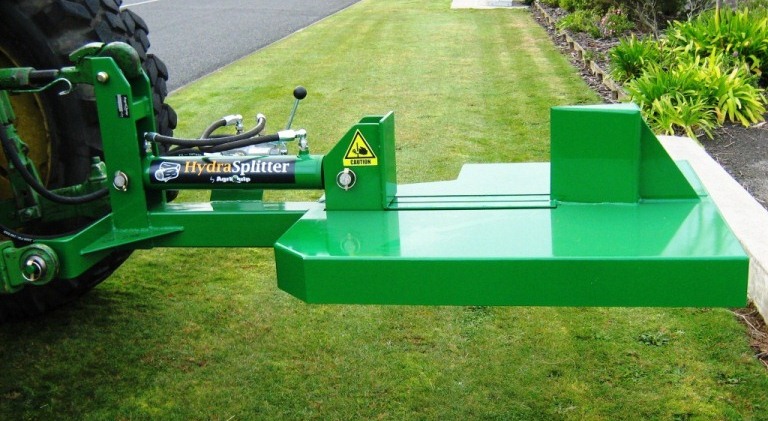

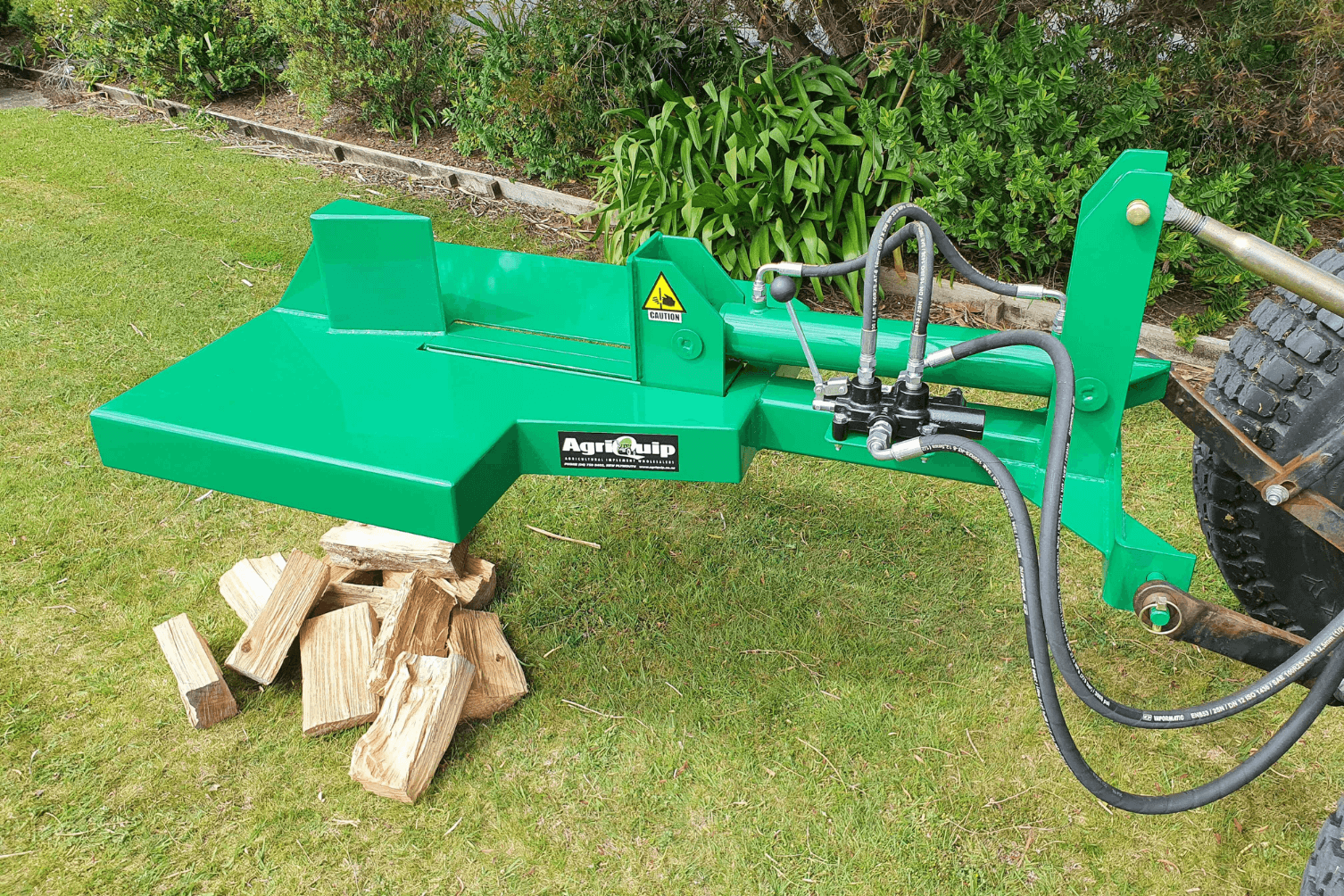

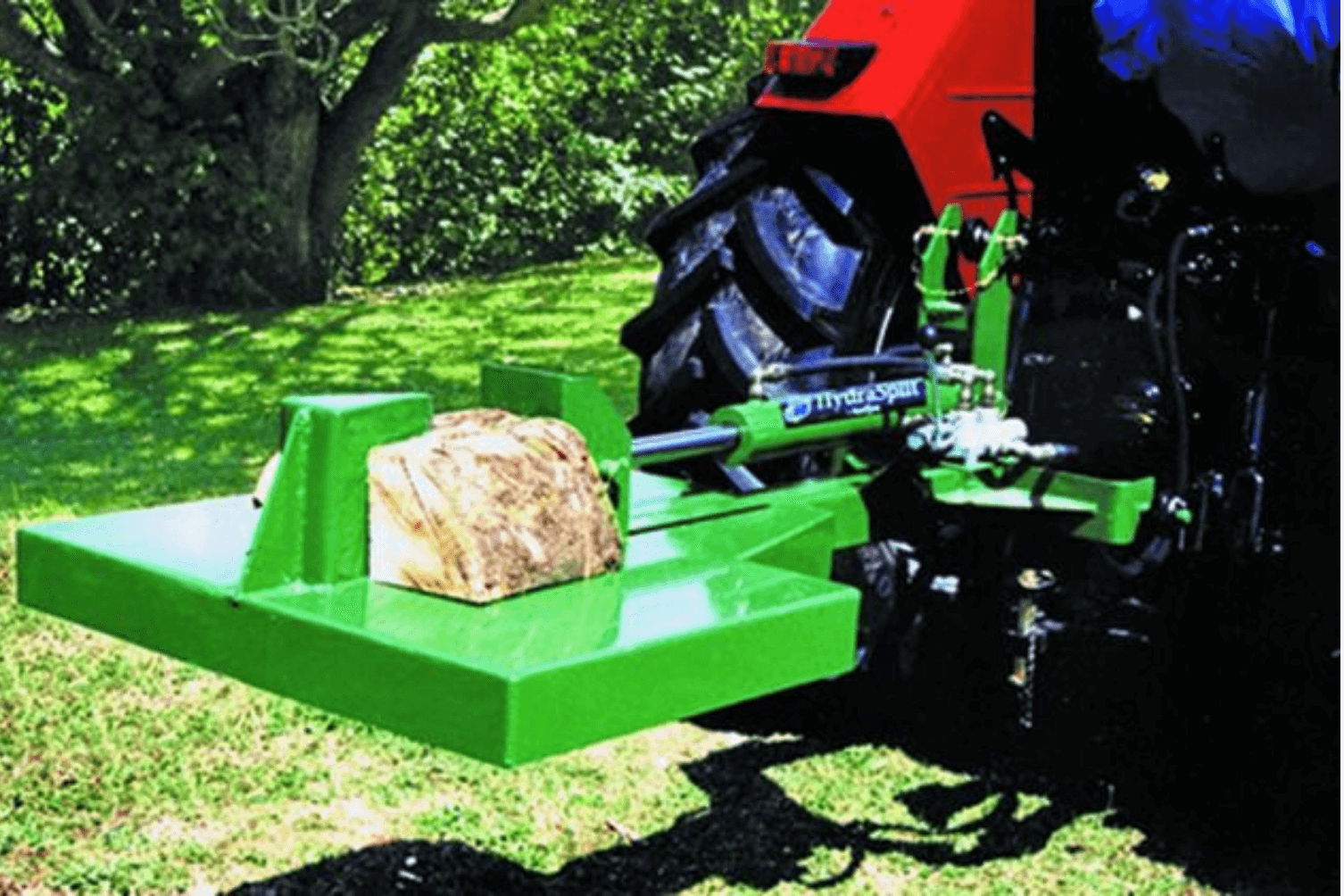

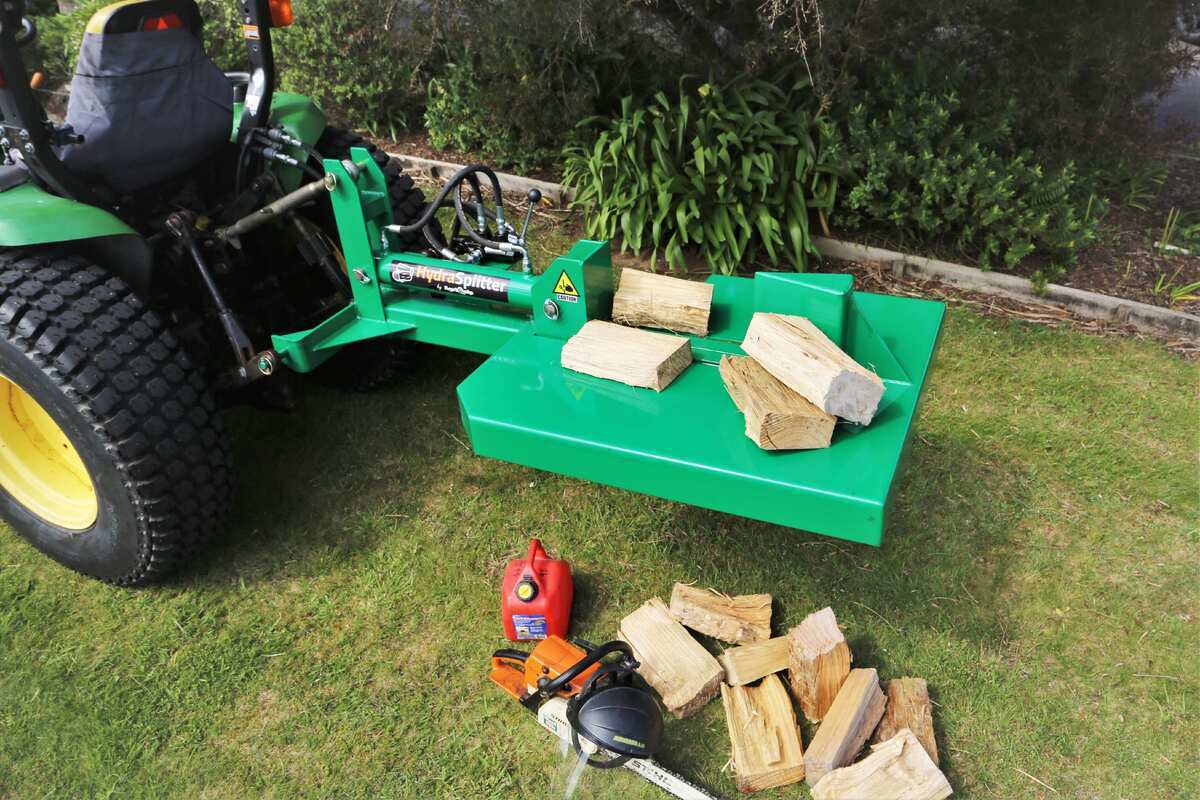

Hydrasplitter TPL

For larger tractors the Agriquip three point linkage mounted Hydrasplitter puts hydraulic power into use with unrivaled force. These splitters features a simple, easy to use control valve with a convenient detent to return the ram quickly - ready for the next operation.

SPECIFICATIONS

Dimensions (mm)     1700 L x 880 W x 540 H
Stroke Time In* 3 Seconds
Stroke Time Out* 3 Seconds
Ram Size 80 mm
Weight 120 kg
Max Log Diameter                 400 mm
Capacity Approx 3m per hour
*Time may vary depending on flow of tractor hydraulics

PHOTO GALLERY

DOWNLOADS

Hydrasplitter TPL Brochure (288 kb)                  Operator/Parts Manual (646 kb)

Back to Top

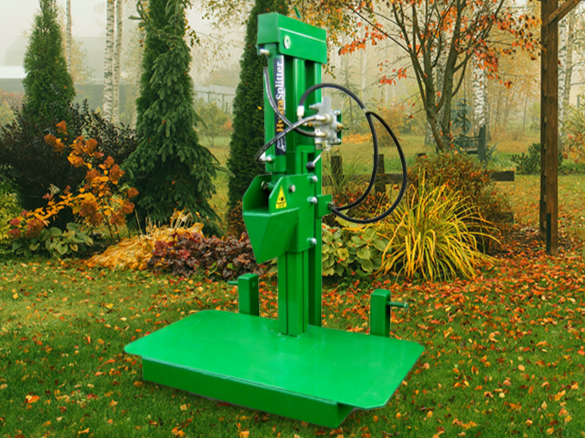

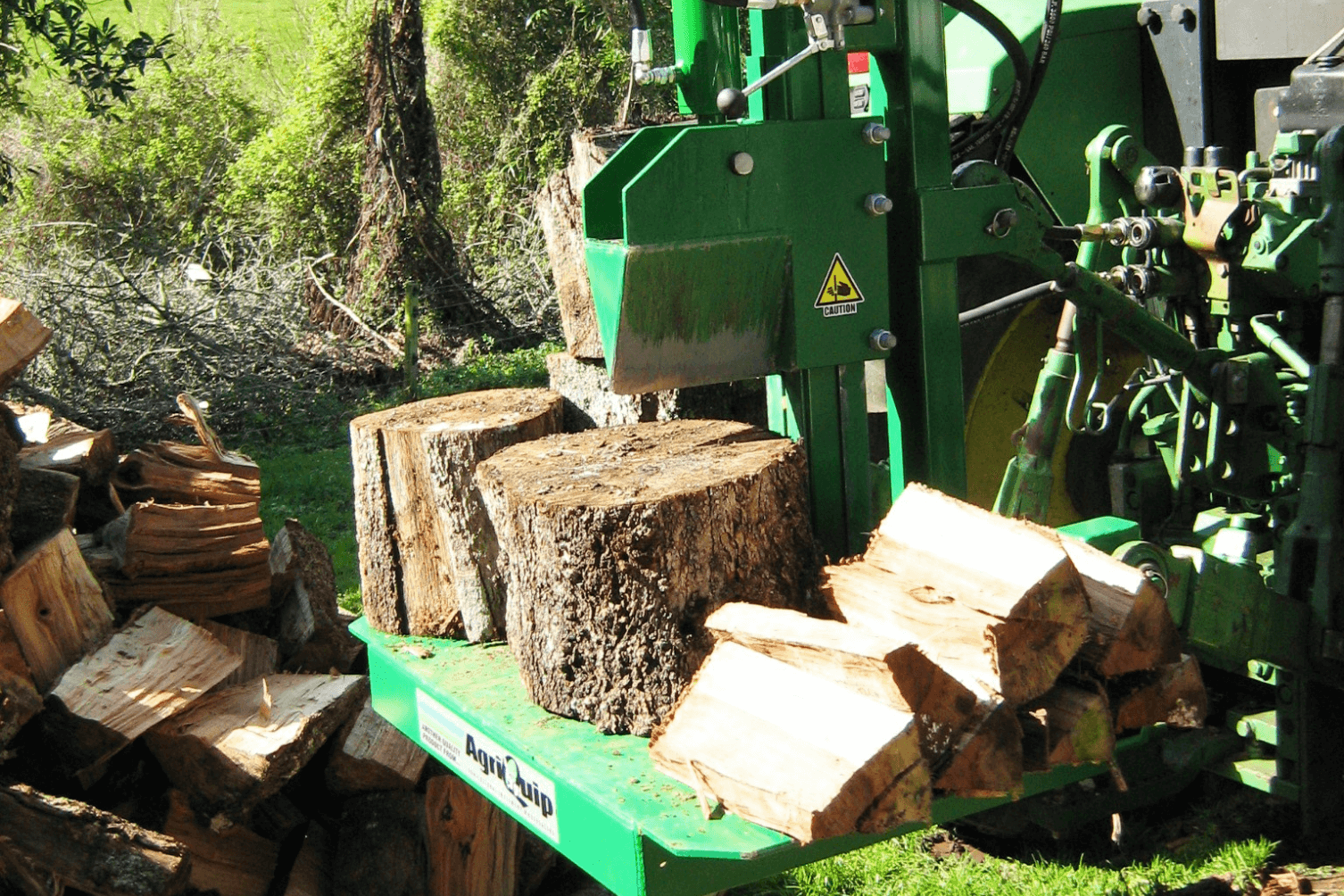

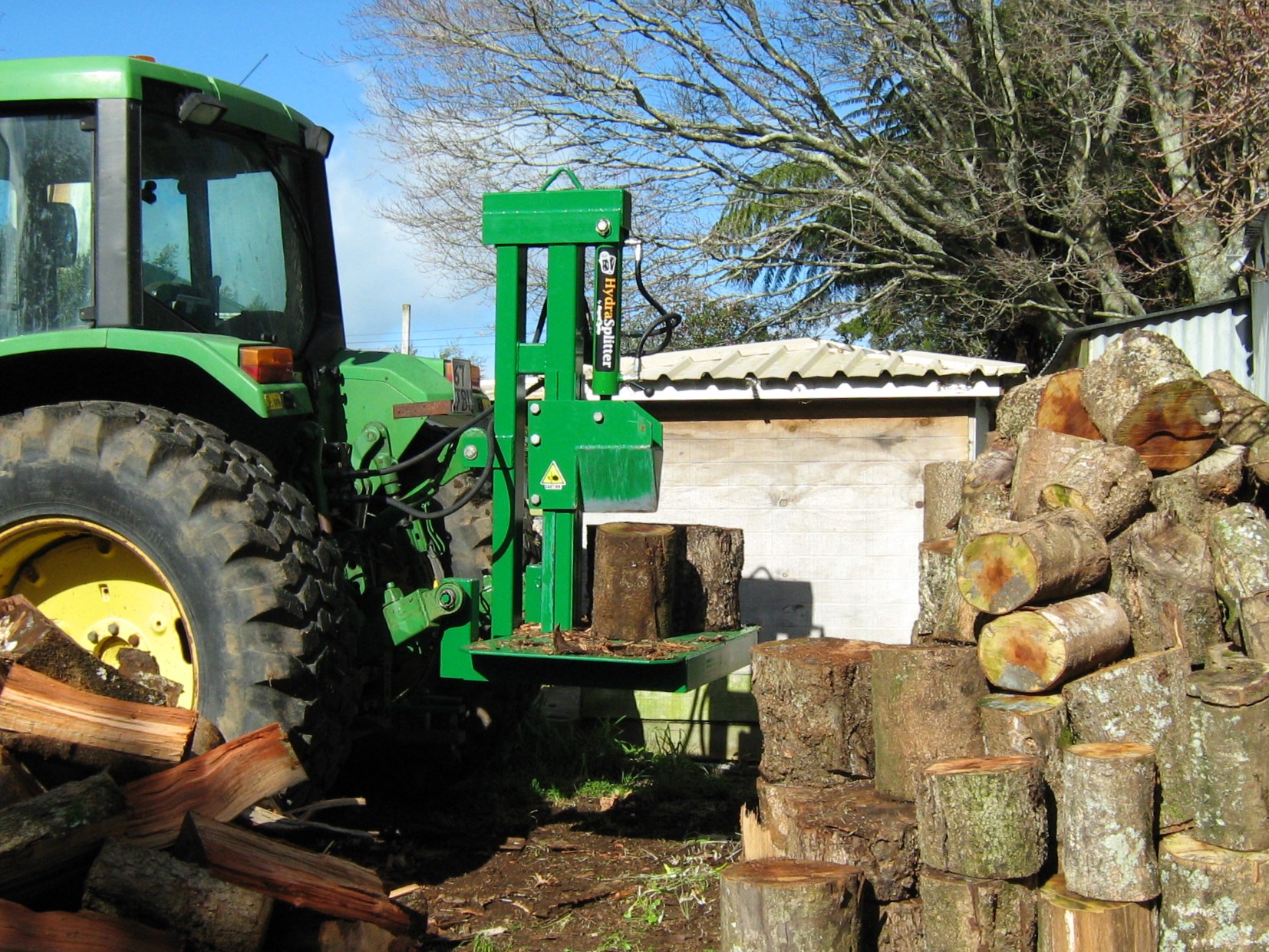

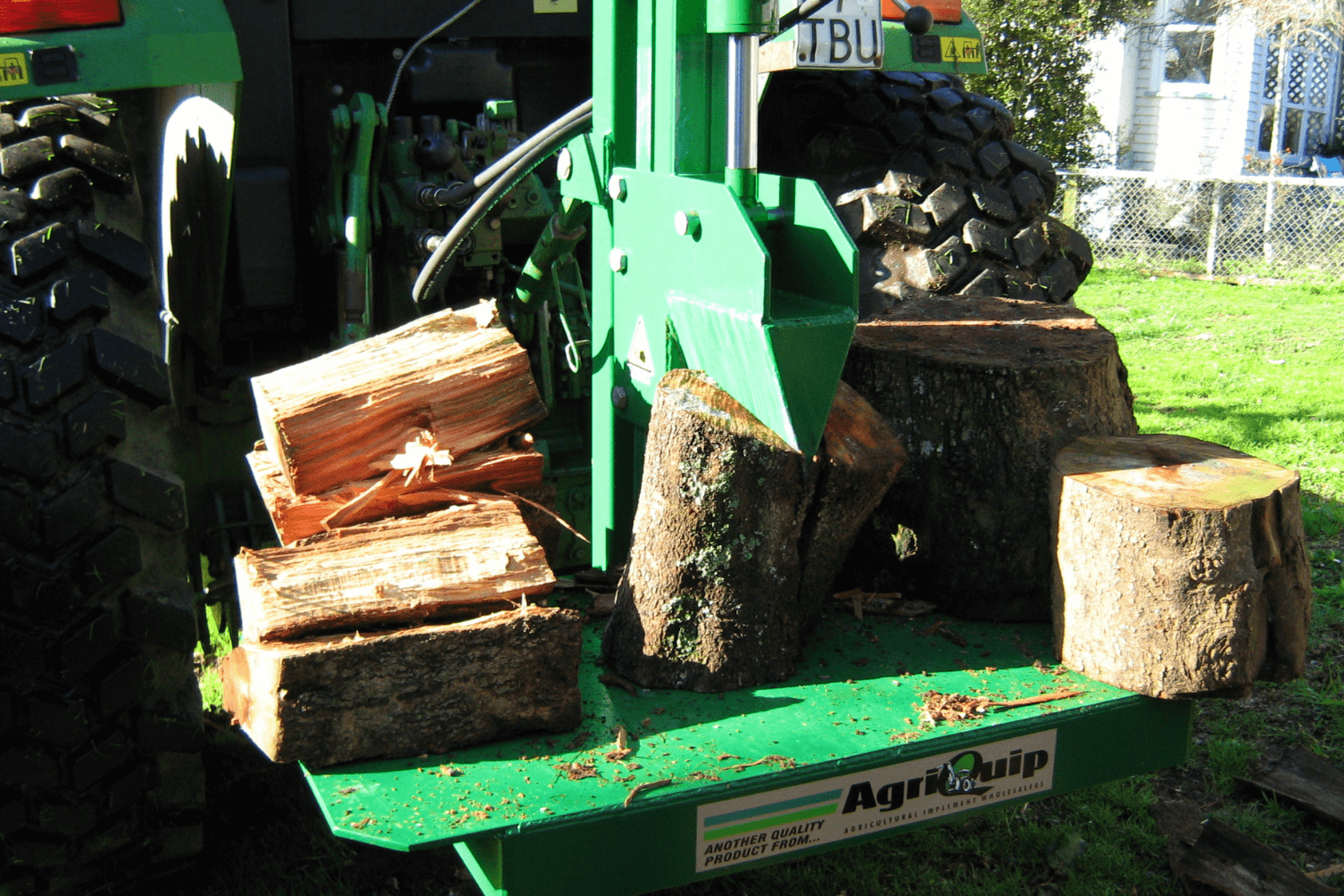

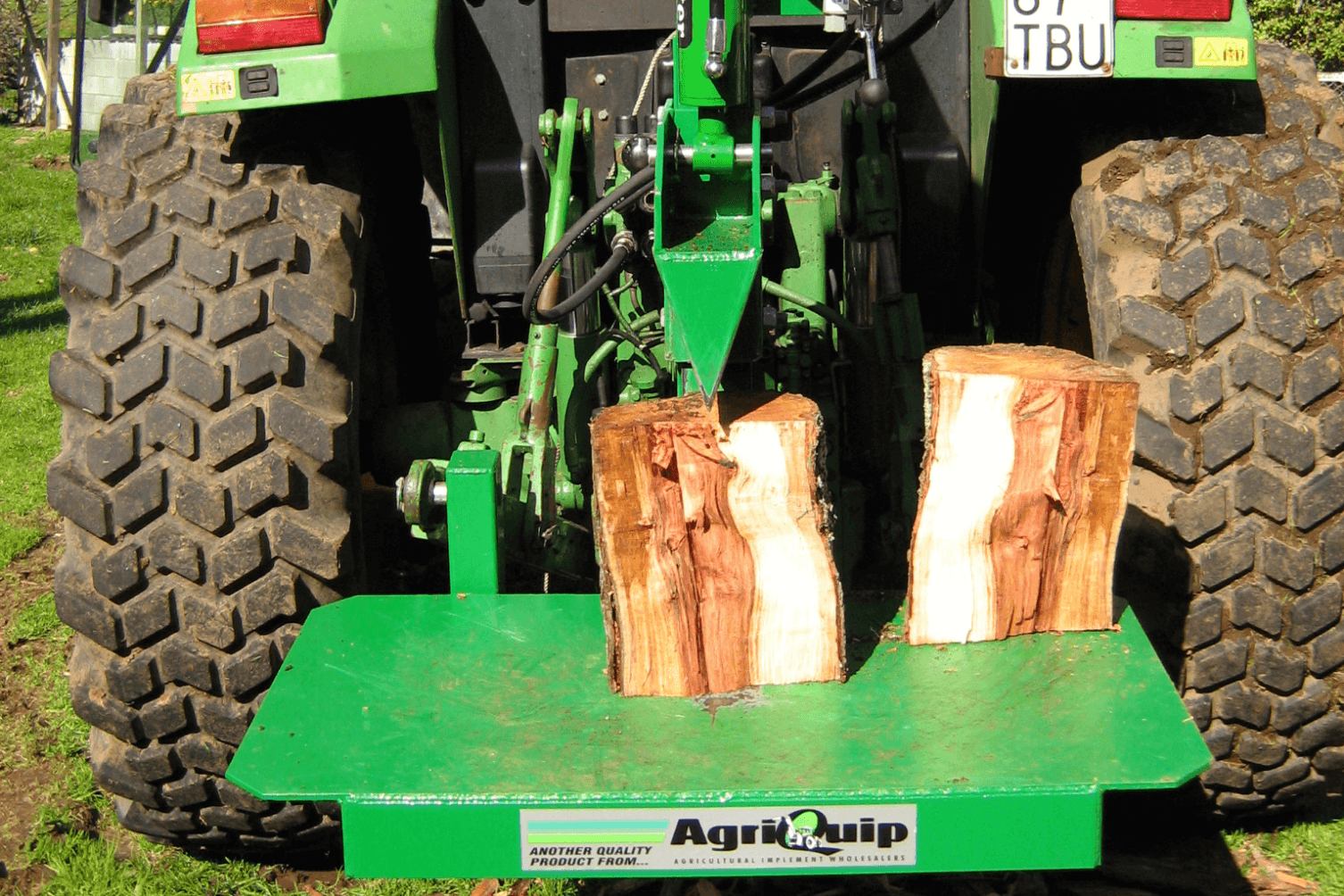

Hydrasplitter VTL



For larger tractors the Agriquip three point linkage mounted Hydrasplitter puts hydraulic power into use with unrivaled force. These splitters feature a simple, easy to use control valve with a convenient detent to return the ram quickly - ready for the next operation.

The VTL can be used from a position sitting on the ground, to a point anywhere in the range of the tractors draft arm lift range, to suit any operator.

The super muscle machine, with the following features;

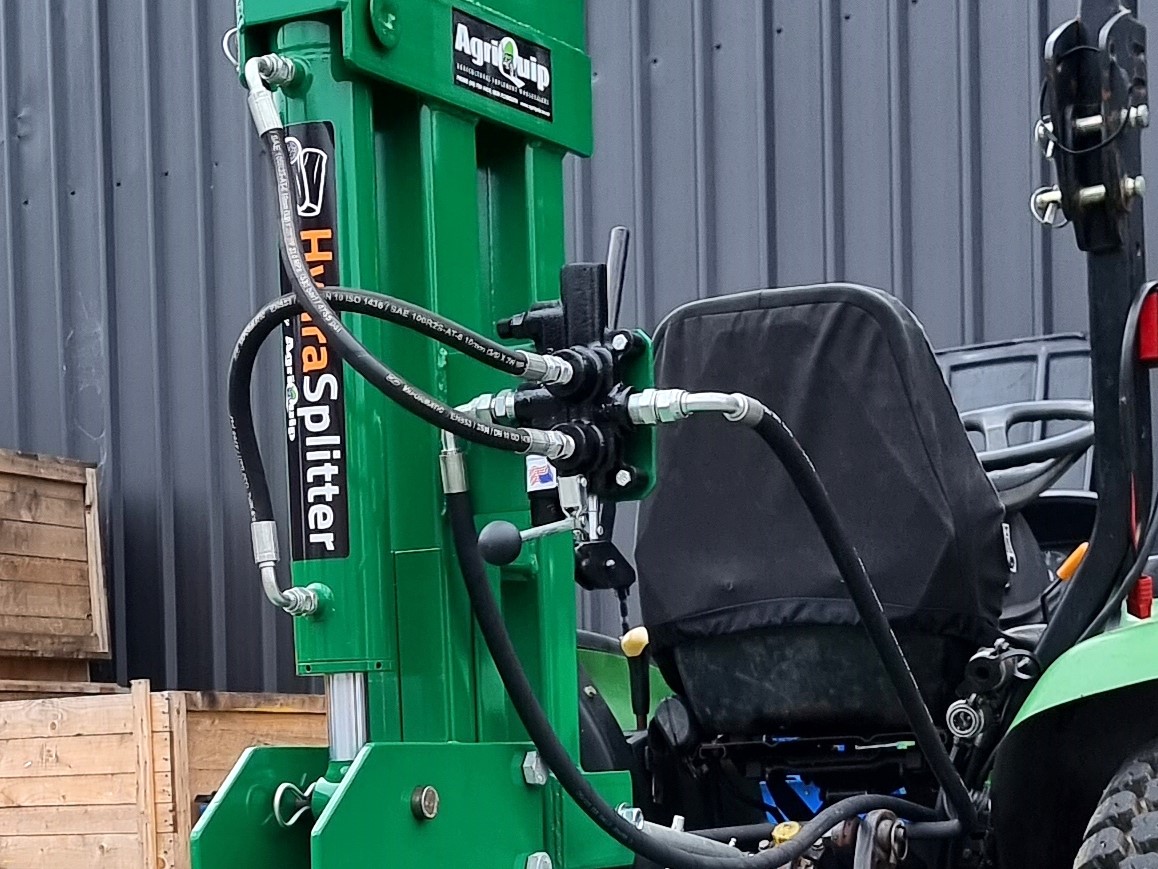

The control valve is simple and easy to use, with convenient detent feature for auto cylinder retract, allowing hands free to shift wood etc.

The large sized, heavy plate table means that wood after being split doesn't fall off easily.

The rugged construction means many years of trouble free use in commercial operation. A proven design of over 10 years in the market.

SPECIFICATIONS

Dimensions (mm)      1650 H x 1200 W x 900 D
Weight 220 kg approx
Table Area 1200 W x 700 D
Hydraulic Cylinder Bore       80 mm
Hydraulic Cylinder Stroke                  400 mm
Axe Head Support Rollers 3
Splitting Force Approx 23 Tonnes

PHOTO GALLERY

(click photo to enlarge)




DOWNLOADS

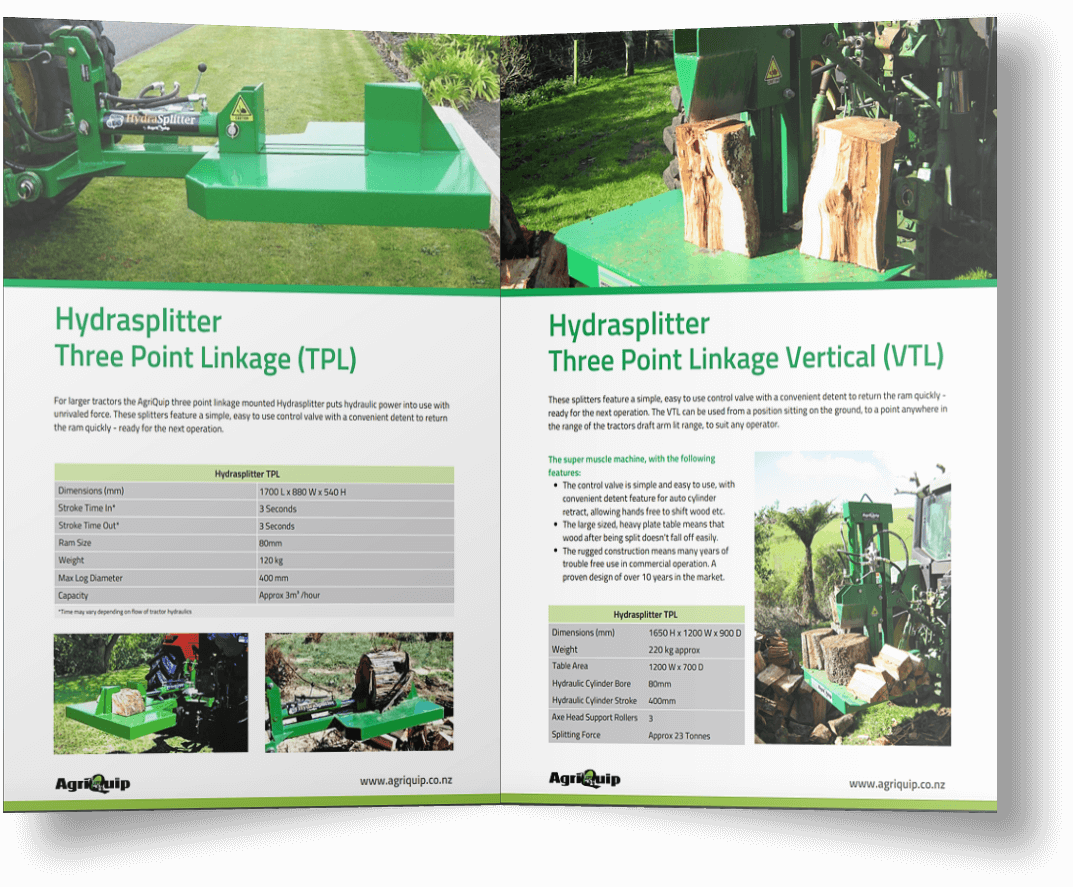

Hydrasplitter VTL Brochure  (2,098 kb)         Operator & Parts Manual (646 kb)
